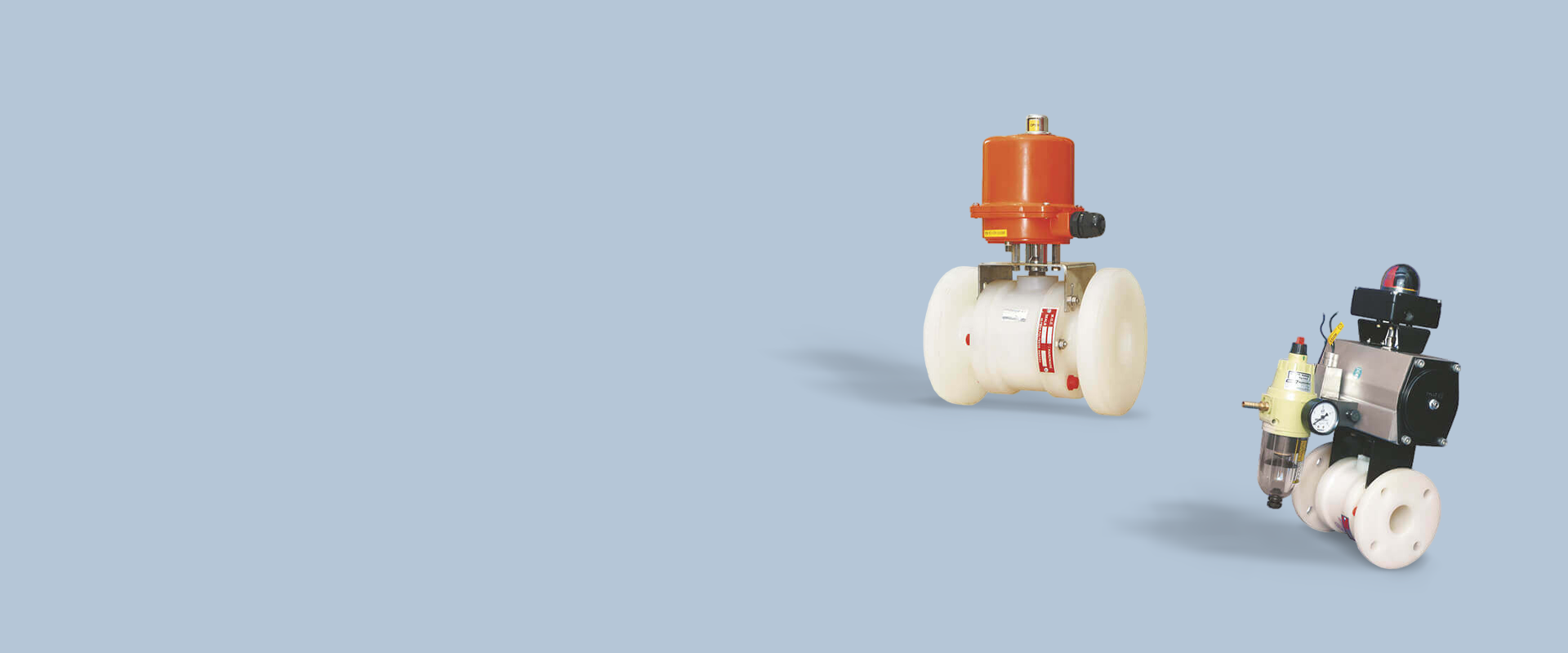

Actuated Thermoplastic Ball Valve
Valve Features
Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP / PPH / PVDF / ETFE |
| 2 | END PIECE | 2 | PP / ISO.PP / PPH / PVDF / ETFE |
| 3 | SPINDLE | 1 | EN-8 INSERTED PP / ISO.PP / PPH / PVDF / ETFE LINED |
| 4 | ACTUATOR | 1 | SEE NOTE 2 |
| 5 | BALL | 1 | PP / ISO.PP / PPH / PVDF / ETFE |
| 6 | FLANGE SEAL | 2 | EPDM / VITON / PTFE / NEOPRENE |
| 7 | SPINDLE SEAL | 2 | EPDM / VITON / PTFE / NEOPRENE |
| 8 | SEAT | 2 | PTFE |
| 9 | FASTENERS | - | MS GALVANISED / SS-304 / SS-316 |
| 10 | ACT. MOUNTING BRACKET | 2 | MS EPOXY COATED |
| 11 | COUPLER | 1 | MS EPOXY COATED |
| 12 | ACT. MOUNTING BOLT | 4 | MS GALVANISED / SS-304 / SS-316 |
| 13 | SOLENOID VALVE | 1 | SEE NOTE 3 |
| 14 | POSITION INDICATOR | 1 | - |

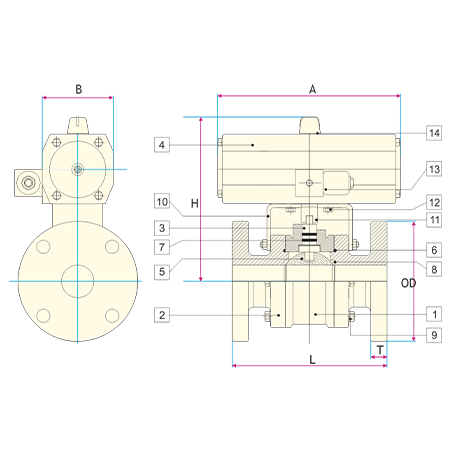

Dimension Table
| Size (NB) | L±3 | OD | H | A | B | T |
|---|---|---|---|---|---|---|
