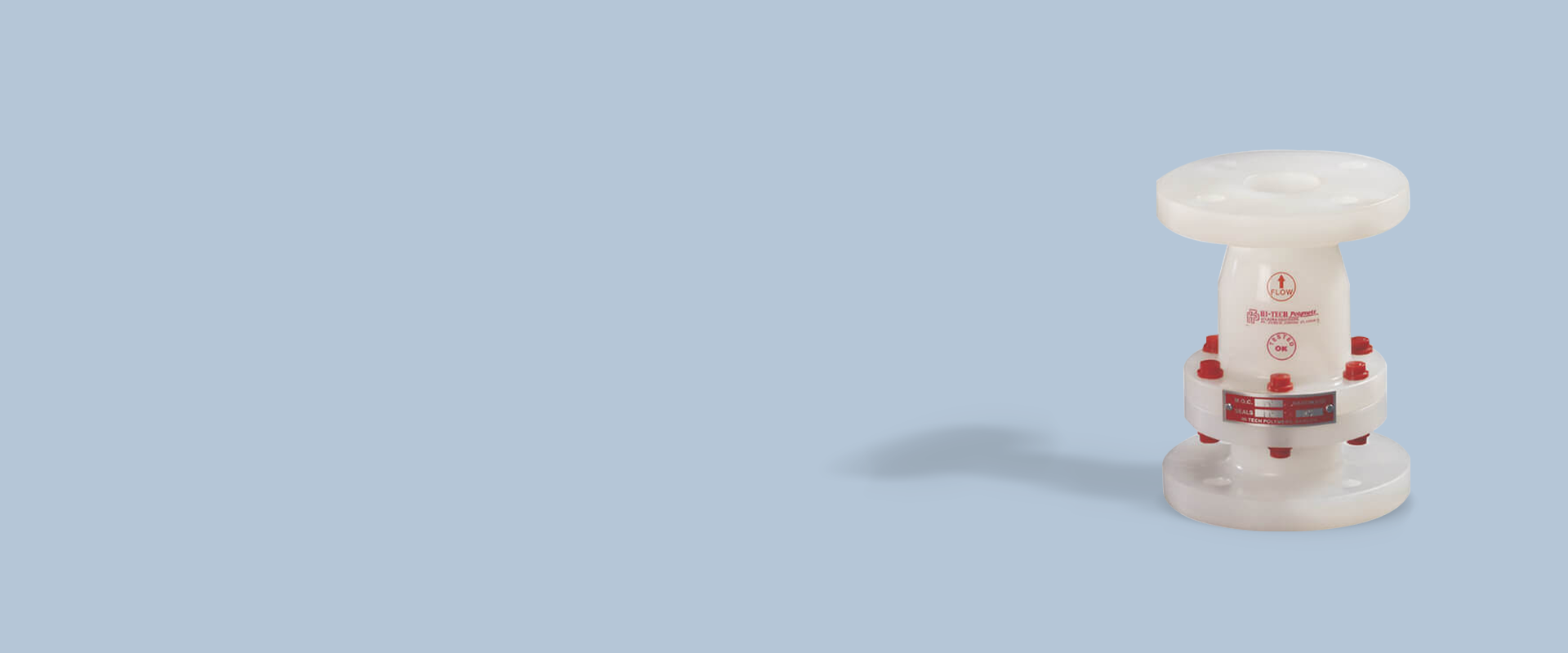

Thermoplastic Ball Check Valve
Valve Features

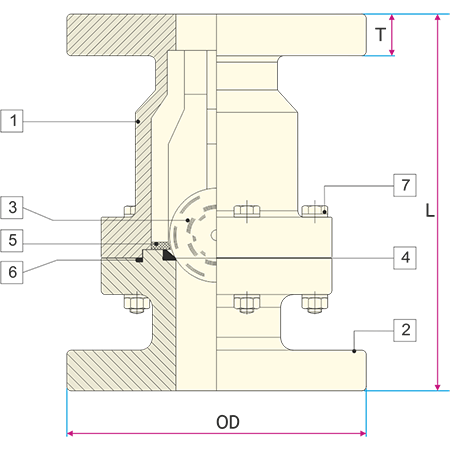

Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP/ PVDF / ETFE |
| 2 | END PIECE | 1 | PP / ISO.PP/ PVDF / ETFE |
| 3 | BALL | 1 | PP / ISO.PP/ PVDF / ETFE |
| 4 | SEAT | 1 | EPDM / VITON / PTFE |
| 5 | SEAT PAD | 1 | PP / ISO.PP/ PVDF / ETFE |
| 6 | BODY SEAL | 1 | EPDM / VITON / PTFE / NEOPRENE |
| 7 | FASTENERS | - | MS GALVANISED / SS-304 / SS-316 |
Dimensional Table
| Size (NB) | L±3 | OD | T |
|---|---|---|---|
| 25 MM | 140 | 120 | 17 |
| 40 MM | 175 | 140 | 17 |
| 50 MM | 212 | 165 | 19 |
| 65 MM | 245 | 203 | 23 |
| 80 MM | 245 | 203 | 23 |
| 100 MM | 300 | 230 | 23 |
| 150 MM | 355 | 280 | 29 |
