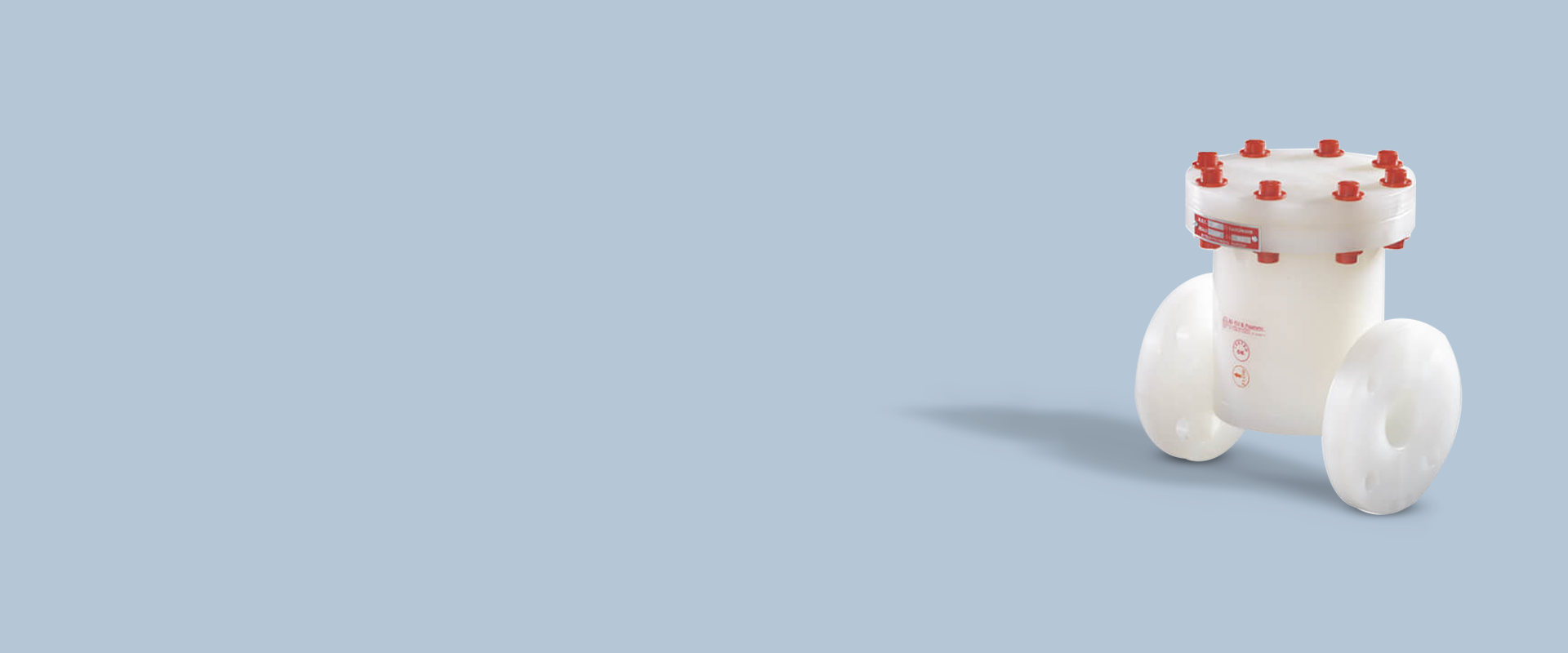

Thermoplastic Strainer 'T' / Basket Type
Valve Solutions For Corrosive Applications
Thermoplastic Strainer 'T' / Basket Type
Valve Features

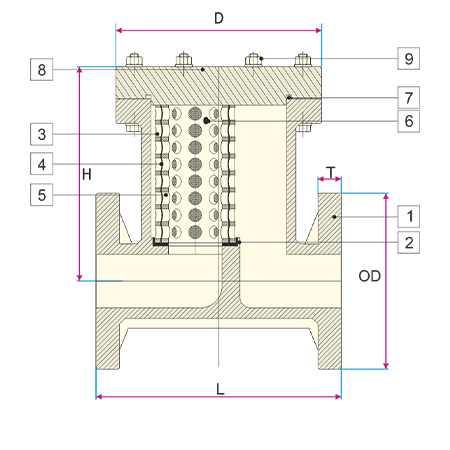

Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | SHELL | 1 | PP / ISO.PP/ PVDF |
| 2 | SEAT | 1 | 25% GLASS FILLED PTFE |
| 3 | OUTER TUBE | 1 | PP / ISO.PP/ PVDF |
| 4 | FILTER WEB | 1 | PP / ETFE |
| 5 | INNER TUBE | 1 | PP / ISO.PP / PVDF |
| 6 | LOCK PIN | 1 | 25% GLASS FILLED PTFE |
| 7 | COVER SEAL | 1 | EPDM/VITON/NEOPRENE/PTFE |
| 8 | STRAINER COVER | 1 | PP / ISO.PP / PVDF |
| 9 | FASTENERS | - | MS GALVANISED / SS-304 / SS-316 |
Dimensional Table
| Size (NB) | L±3 | OD | H | T | D |
|---|---|---|---|---|---|
| 15 MM | 160 | 95 | 140 | 17 | 140 |
| 20 MM | 160 | 120 | 140 | 17 | 140 |
| 25 MM | 160 | 120 | 140 | 17 | 140 |
| 40 MM | 230 | 165 | 190 | 19 | 195 |
| 50 MM | 230 | 165 | 190 | 19 | 195 |
| 80 MM | 310 | 203 | 260 | 25 | 250 |
| 100 MM | 352 | 230 | 290 | 26 | 310 |
