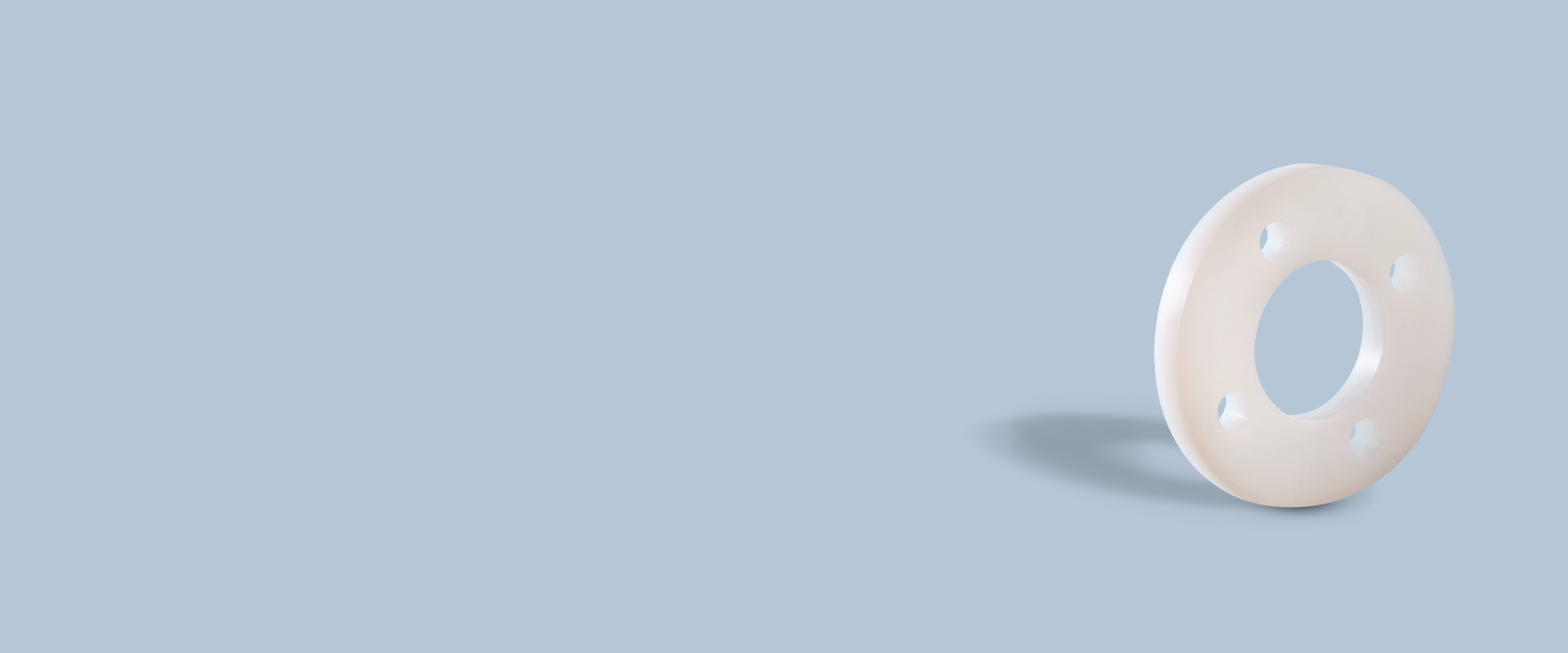

Thermoplastic Flanges
Dimension Table
| Size in Pipe OD | Size in NB | ID | OD | T |
|---|---|---|---|---|
| 20 | 15 | 20 | 95 | 16 |
| 25 | 20 | 25 | 114 | 16 |
| 32 | 25 | 32 | 120 | 17 |
| 50 | 40 | 50 | 140 | 17 |
| 63 | 50 | 63 | 165 | 21 |
| 75 | 65 | 75 | 199 | 22 |
| 90 | 80 | 90 | 199 | 22 |
| 110 | 100 | 110 | 230 | 22 |
| 140 | 125 | 140 | 254 | 25 |
| 160 | 150 | 160 | 305 | 25 |
| 225 | 200 | 225 | 343 | 30 |
| 315 | 300 | 315 | 483 | 30 |
