Lined Plug Valve

Valve Solutions For Corrosive Applications

Lined Plug Valve

Valve Design
API 599
Shell Design
ANSI B 16.34
Face To Face
ANSI B 16.10/EN 558-1/EN 558-12/EN 558-3
Flange Connection Rating
ANSI B 16.5,150#,300#/ DIN PN 10 / JIS
Testing Standard
API 598/BS EN 12266-1
Connection
FLANGED, RF
Inquire Now Download
Go Back
Lined Plug Valve

Valve Solutions For Corrosive Applications

Lined Plug Valve

Inquire Now Download

Specifications

Lined Plug Valve

Valve Design
API 599
Shell Design
ANSI B 16.34
Face To Face
ANSI B 16.10/EN 558-1/EN 558-12/EN 558-3
Flange Connection Rating
ANSI B 16.5,150#,300#/ DIN PN 10 / JIS
Testing Standard
API 598/BS EN 12266-1
Connection
FLANGED, RF

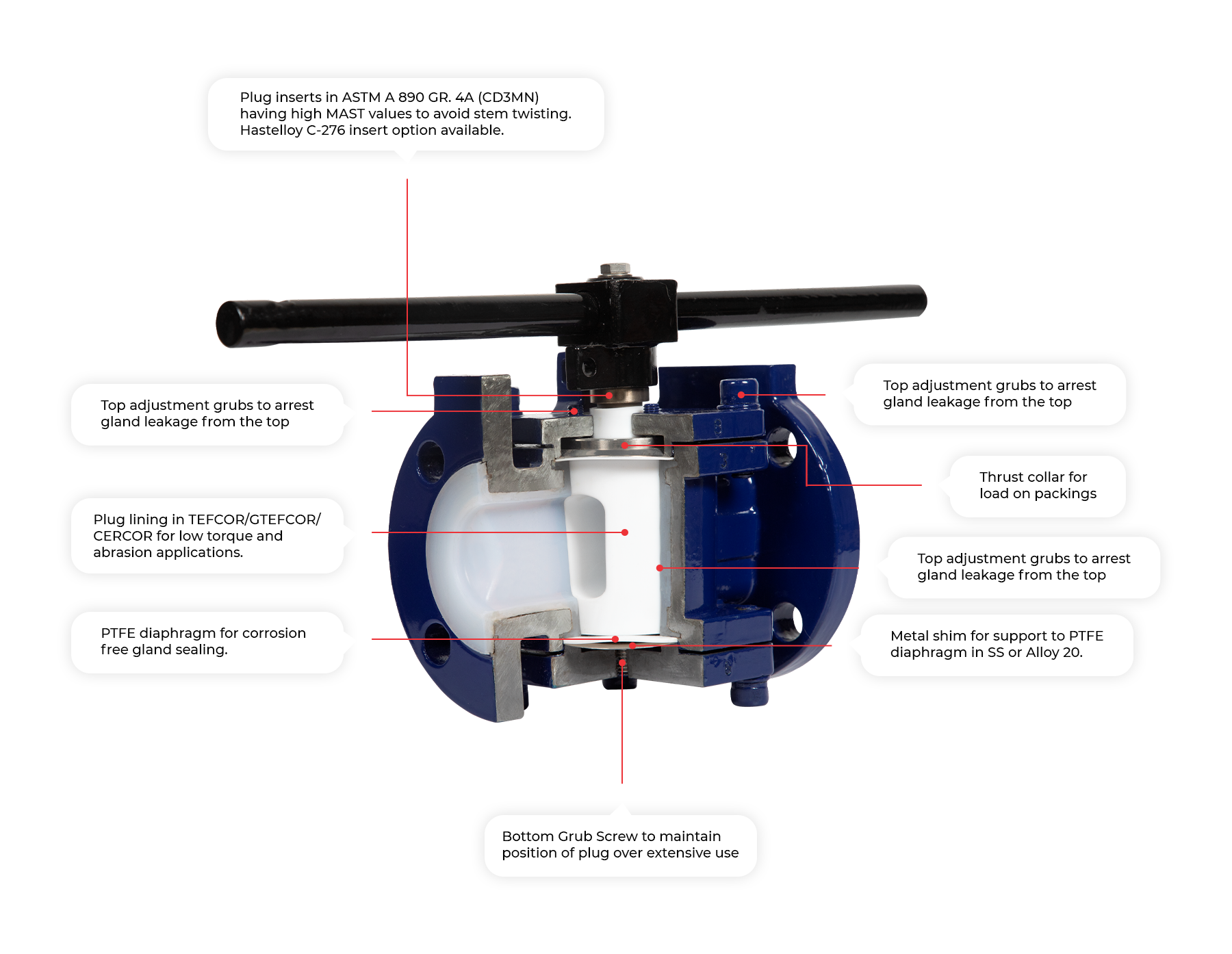

Lined Plug Valve Features

Lined Plug Valve

Tests Performed

SIZES 0.5" ΤΟ 10" 12”
HIGH PR. SHELL TEST 225 PSI 15 kg/cm² 128 PSI 9 kg/cm² HYDRO
HIGH PR. SEAT TEST HYDRO 165 PSI 11 kg/cm² 94 PSI 6.6 kg/cm²
LOW PR. SEAT TEST PNEUMATIC 85 PSI 6kg/cm2 43 PSI 3kg/cm2
SPARK TEST KVDC
SPARK TEST 20 KDVC

VALVE NET WEIGHTS

SIZE WEIGHT
kg lb
0.5” 2.40 5.30
1” 4.60 10.15
1.5" 7.40 16.30
2” 11.50 25.35
3" 17.55 38.70
4” 29.90 65.90
6" 60.00 132.30
8" 99.00 219.00
10" 160.00 353.00
12" 315.00 695.00

  • A. LEVER OPERATED (1/2" TO 4”)

    PART LIST

    PART NO. DESCRIPTION MATERIAL OF CONSTRUCTION
    1 Body* ASTM A 216 GR. WCB + PFA
    2 Plug** 17-4PH + PFA
    3 Bearing Washer PTFE / MPTFE
    4 Wedge Ring PTFE / MPTFE
    5 Diaphragm PTFE / MPTFE
    6 Shim*** SS 304
    7 Thrust Collar*** SS 304
    8 Cover Plate ASTM A 216 GR. WCB / SS 304 / SS 316
    9 Grub Screw SS 304
    10 Allen Bolt Spring Washer HT STEEL / SS 304 / SS 316
    11 Allen Bolt ASTM A 193 GR. B7 / SS 304 / SS 316 / HC - 276
    12 Lever MS
    13 Lever Holding Block ASTM A 216 GR.WCB
    14 Lever Locating Washer MS GAlVANISED
    15 Lever Holding Bolt Washer SS 304 / SS 316
    16 Lever Holding Bolt SS 304 / SS 316

    DIMENSIONS

    NOTE:

    1. ALL DIMENSION ARE IN INCHES & MM. 2. FUGITIVE EMISSION/SIL 3 CERTIFIED VALVES AVAILABLE. 3. TOLERANCES ARE GIVEN IN INCHES. 4. BODY MOC OPTIONS: CF8, CF8M, CF3M, HASTELLOY C, INCONEL 5. TRIM INSERT MOC OPTIONS: CF8M, CF3M, CD3MN. 6. LINING OPTIONS: ANTI-STATIC PFA, FEP, PVDF, PPH. 7. SHIM/THRUST COLLAR MOC OPTIONS: SS316, MONEL, HC-276
    Size L ±0.11 IN. ØD ±0.04 IN. Ød ±0.04 IN. T +0.11/-0.00 IN. ØD1 ±0.04 Size IN. H ±0.19 IN. ØI ±0.20 IN. ØK ±0.062 IN. n Ø
    INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM
    1/2" 15 4.25 108 3.50 89 0.51 13 0.59 15.0 1.38 35 3.19 81 8.86 225 2.36 60 04 5/8 16
    3/4" 20 5.00 127 4.25 108 0.98 25 0.63 16 2.01 51 4.09 104 12.80 325 3.11 79 04 5/8 16
    1" 25 5.00 127 4.25 108 0.98 25 0.63 16.0 2.01 51 4.09 104 12.80 325 3.11 79 04 5/8 16
    1.5" 40 6.50 165 5.00 127 1.46 37 0.75 19.0 2.87 73 4.33 110 17.72 450 3.86 98 04 5/8 16
    2" 50 7.01 178 5.98 152 1.97 50 0.81 20.5 3.62 92 5.00 127 17.72 450 4.76 121 04 3/4 19
    3" 80 7.99 203 7.48 190 2.99 76 0.98 25.0 5.00 127 5.55 141 17.72 450 5.98 152 04 3/4 19
    4” 100 9.02 229 9.02 229 3.70 94 0.98 25.0 6.18 157 6.93 176 29.53 750 7.52 191 08 3/4 19

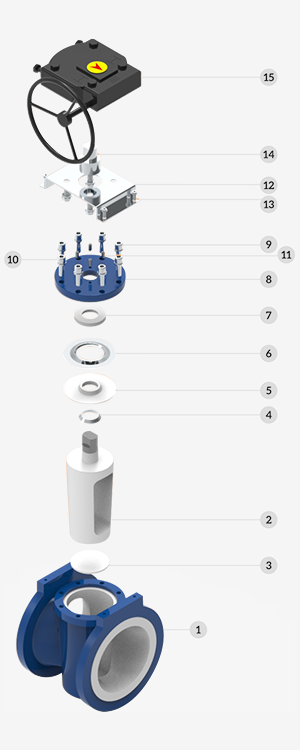

  • B. GEAR OPERATED (6" TO 12")

    PART LIST

    PART NO. DESCRIPTION MATERIAL OF CONSTRUCTION
    1 Body* ASTM A 216 GR. WCB + PFA
    2 Plug** 17-4PH + PFA
    3 Bearing Washer PTFE / MPTFE
    4 Wedge Ring PTFE / MPTFE
    5 Diaphragm PTFE / MPTFE
    6 Shim*** EPDM
    7 Thrust Collar*** SS 304
    8 Cover Plate ASTM A 216 GR. WCB / SS 304 / SS 316
    9 Allen Bolt B7 / SS 304 / SS 316 / HC - 276
    10 Allen Bolt Spring Washer HT STEEL / SS 304 / SS 316
    11 Grub Screw SS 304
    12 Gearbox Mounting Bracket SS 304
    13 Bracket Mounting Bolts HT 12.9
    14 Coupler SS 304
    15 Gearbox Cast Iron

    DIMENSIONS

    Size L ±0.11 IN. ØD ±0.04 IN. Ød ±0.04 IN. T +0.11/-0.00 IN. ØD1 ±0.04 Size IN. H ±0.19 IN. ØI ±0.20 IN. ØK ±0.062 IN. n Ø
    INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM
    6" 150 10.51 267 11.02 280 5.91 150 1.10 28 8.50 216 17.60 447 7.87 200 9.49 241 08 6/7 22
    8" 200 11.69 297 13.50 343 7.64 194 1.18 30 10.55 268 20.16 512 10.24 260 11.73 298 08 6/7 22
    10" 250 12.99 330 15.98 406 9.84 250 1.34 34 12.76 324 23.23 590 11.02 280 14.25 362 12 1 25
    12" 300 24.00 610 19.00 483 11.81 300 1.41 36 15.00 381 26.77 680 13.77 350 17.00 432 12 1 25

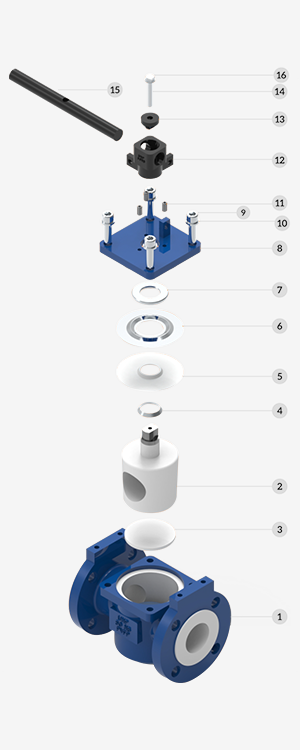

  • C. LEVER OPERATED (1/2" TO 1.5")

    PART LIST

    PART NO. DESCRIPTION MATERIAL OF CONSTRUCTION
    1 Body* ASTM A 216 GR. WCB + PFA
    2 Plug** 17-4PH + PFA
    3 Bearing Washer PTFE / MPTFE
    4 Wedge Ring PTFE / MPTFE
    5 Diaphragm PTFE / MPTFE
    6 Shim*** SS 304
    7 Thrust Collar*** SS 304
    8 Cover Plate ASTM A 216 GR. WCB / SS 304 / SS 316
    9 Allen Bolt ASTM A 193 GR. B7/ SS 304/SS 316/HC-276
    10 Allen Bolt Spring Washer HT STEEL / SS 304 / SS 316
    11 Grub Screw SS 304
    12 Lever Holding Block ASTM A 216 GR. WCB
    13 Lever Locating Washer MS GALVANISED
    14 Lever Holding Bolt SS 304 / SS 316
    15 Lever MS
    16 Lever Holding Bolt Washer SS 304 / SS 316

    DIMENSIONS

    Size L ±0.11 IN. ØD ±0.04 IN. Ød ±0.04 IN. T +0.11/-0.00 IN. ØD1 ±0.04 Size IN. H ±0.19 IN. ØI ±0.20 IN. ØK ±0.062 IN. n Ø
    INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM
    1/2" 15 5.12 130 3.50 89 0.51 13 0.59 15 1.38 35 3.19 81 8.86 225 2.36 60 04 5/8 16
    3/4" 20 5.51 140 4.25 108 0.98 25 0.63 16 2.01 51 4.09 104 12.80 325 2.76 70 04 5/8 16
    1" 25 5.51 140 4.25 108 0.98 25 0.63 16 2.01 51 4.09 104 12.80 325 3.11 79 04 5/8 16
    1.5" 40 6.49 165 5.00 127 1.5 38 0.78 20 2.87 73 4.33 110 17.75 451 3.85 98 04 5/8 16

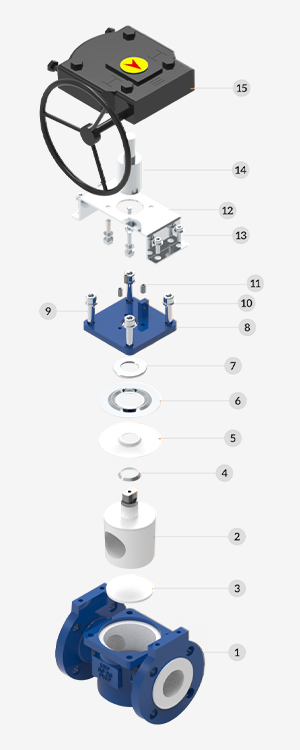

  • D. GEAR OPERATED (2" TO 4")

    PART LIST

    PART NO. DESCRIPTION MATERIAL OF CONSTRUCTION
    1 Body* ASTM A 216 GR. WCB + PFA
    2 Plug** 17-4PH + PFA
    3 Bearing Washer PTFE / MPTFE
    4 Wedge Ring PTFE / MPTFE
    5 Diaphragm PTFE / MPTFE
    6 Shim SS 304
    7 Thrust Collar SS 304
    8 Cover Plate ASTM A 216 GR. WCB / SS 304 / SS 316
    9 Allen Bolt B7 / SS 304 / SS 316 / HC - 276
    10 Allen Bolt Spring Washer HT STEEL / SS 304 / SS 316
    11 Grub Screw SS 304
    12 Gearbox Mounting Bracket SS 304
    13 Bracket Mounting Bolts HT 12.9
    14 Coupler SS 304
    15 Gearbox CAST IRON

    DIMENSIONS

    Size L ±0.11 IN. ØD ±0.04 IN. Ød ±0.04 IN. T +0.11/-0.00 IN. ØD1 ±0.04 Size IN. H ±0.19 IN. ØI ±0.20 IN. ØK ±0.062 IN. n Ø
    INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM
    2" 50 7.99 203 5.98 152 1.97 50 0.81 20.50 3.62 92 7.52 191 5.31 135 4.76 121 04 3/4 19
    3" 80 12.20 310 7.48 190 2.99 76 0.98 25.00 5.00 127 8.27 210 5.31 135 5.98 152 04 3/4 19
    4" 100 13.78 350 9.02 229 3.70 94 1.08 27.50 6.18 157 9.88 251 7.87 200 7.52 191 08 3/4 19

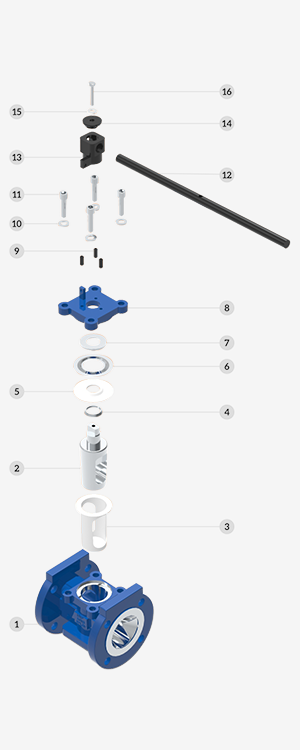

  • E. SLEEVED LEVER OPERATED (1" TO 4")

    PART LIST

    PART NO. DESCRIPTION MATERIAL OF CONSTRUCTION
    1 Body* ASTM A 216 GR. WCB / SS 304 / SS 316
    2 Plug** ASTM A 890 GR. 4A (CD3MN) / CF8M
    3 Sleeve PTFE / MPTFE
    4 Wedge Ring PTFE / MPTFE
    5 Diaphragm PTFE / MPTFE
    6 Shim SS 304
    7 Thrust Collar SS 304
    8 Cover Plate ASTM A 216 GR. WCB/SS 304/SS 316
    9 Grub Screw SS 304
    10 Allen Bolt Spring Washer B7 SS 304 / SS 316
    11 Allen Bolt ASTM A 193 GR. B7
    12 Lever MS
    13 Lever Holding Block ASTM A 216 GR. WCB
    14 Lever Locating Washer MS GALVANISED
    15 Lever Holding Bolt Washer SS 304
    16 Lever Holding Bolt SS 304

    DIMENSIONS

    Size L ±0.11 IN. ØD ±0.04 IN. ØD1 ±0.04 Size IN. Ød ±0.04 IN. T +0.11/-0.00 IN. H ±0.19 IN. ØK ±0.062 IN. 1 0.19V IN. n Ø
    INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM
    1" 25 5.00 127 4.25 108 2.00 51 0.98 25 0.62 16.0 4.17 106 3.11 79 12.79 325 04 5/8 16
    1.5" 40 6.49 165 5.00 127 2.87 73 1.57 40 0.74 19.0 4.29 109 3.86 98 17.71 450 04 5/8 16
    2" 50 7.00 178 5.98 152 3.62 92 1.96 50 0.80 20.5 5.47 139 4.76 121 17.71 450 04 3/4 19
    3" 80 7.99 203 7.48 190 5.00 127 2.99 76 0.98 25.0 5.78 147 5.98 152 17.71 450 04 3/4 19
    4" 100 9.01 229 9.01 229 6.18 157 3.93 100 0.98 25.0 6.92 176 7.52 191 29.52 750 08 3/4 19

  • F. VALVE Cv & TORQUE VALUES

    SIZE TORQUE IN Nm TORQUE IN in-Ib
    PFA PLUG TEFCOR PLUG PFA PLUG TEFCOR PLUG
    0.5” 25 - 221 -
    1” 35 - 310 -
    1.5" 50 30 443 266
    2” 75 40 664 354
    3" 140 50 1239 443
    4" 235 100 2080 885
    6" 525 238 4646 2100
    8" 800 - 7080 -
    10" 1900 - 16815 -
    12" 4100 - 36285 -

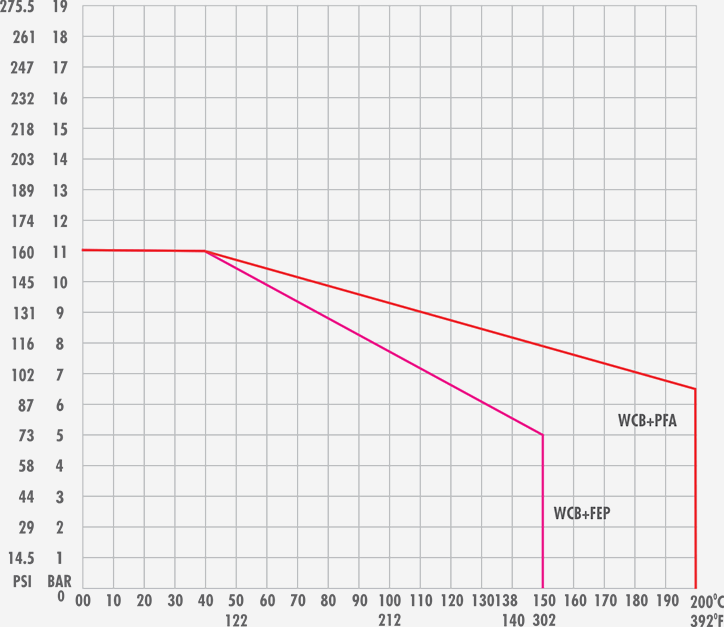

  • G. PRESSURE - TEMPERATURE GRAPH

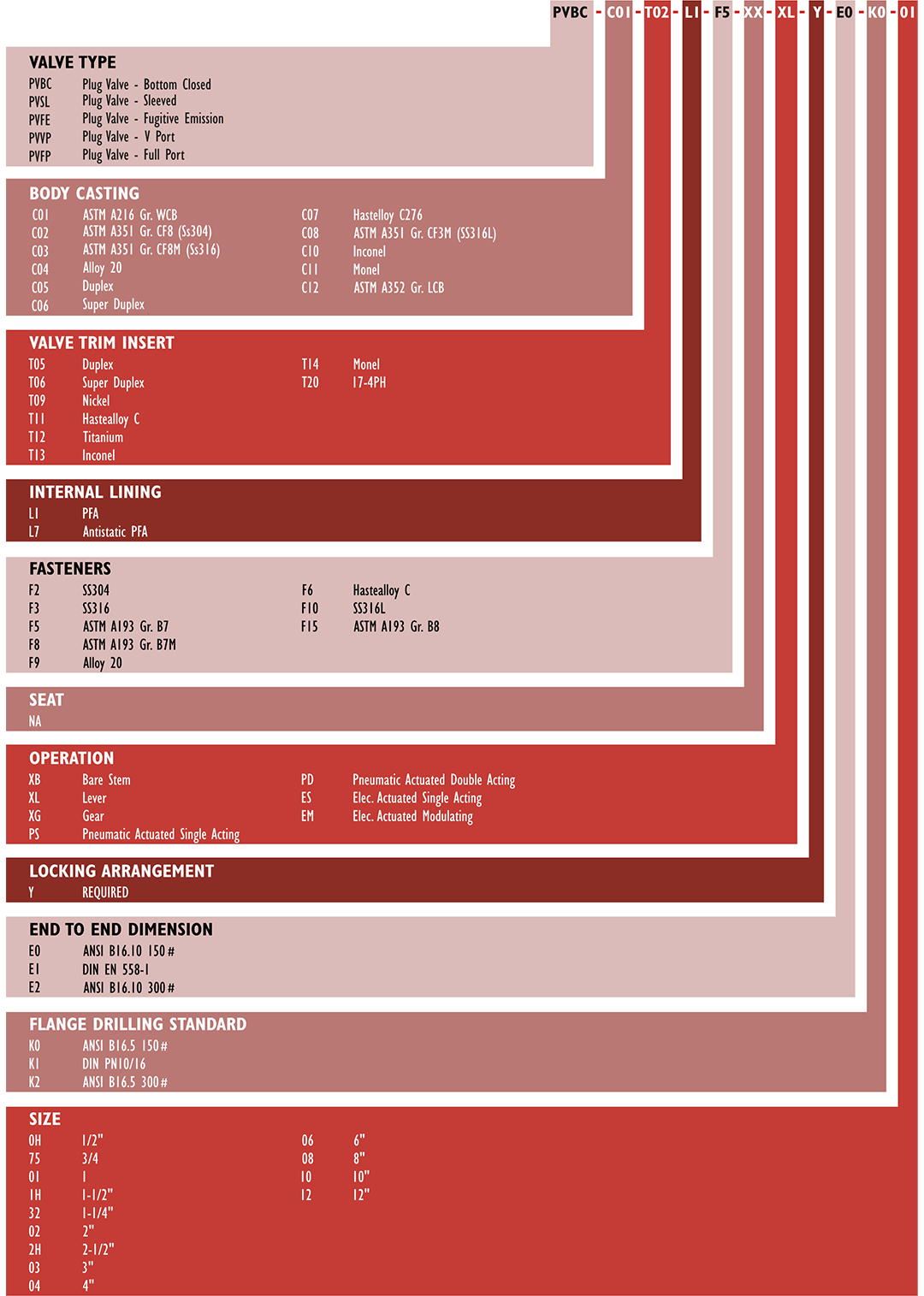

  • H. LINED Lined Plug Valve DE-CODE
