Check Valve Float Type Horizontal Installation
Valve Solutions For Corrosive Applications
Check Valve Float Type Horizontal Installation

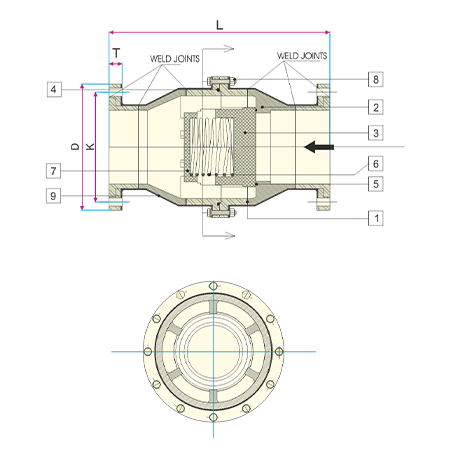

Valve Features
Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY PIECE | 2 | PP / ISO.PP / PVDF |
| 2 | SEAT | 1 | PP / ISO.PP / PVDF |
| 3 | FLOAT | 1 | PP / ISO.PP / PVDF |
| 4 | BODY SEAL | 1 | EPDM / VITON |
| 5 | FLOAT SEAL | 1 | EPDM / VITON |
| 6 | OPEN COIL SPRINGS | 1 | HASTALLOY / SS-316L |
| 7 | SPRING HOUSING | 1 | PP / ISO.PP / PVDF |
| 8 | FASTENERS | - | SS-304 |
| 9 | FRP LINING | - | 3 MM THK. - ISOPHTHALIC RESIN |
Dimension Table
| Size (NB) | L±8 | D | T | K | No of Holes | Holes |
|---|---|---|---|---|---|---|
| 200 MM | 600 | 343 | 29 | 298 | 8 | 22 |
| 250 MM | 640 | 407 | 31 | 362 | 12 | 25 |
| 300 MM | 640 | 483 | 32 | 432 | 12 | 25 |
