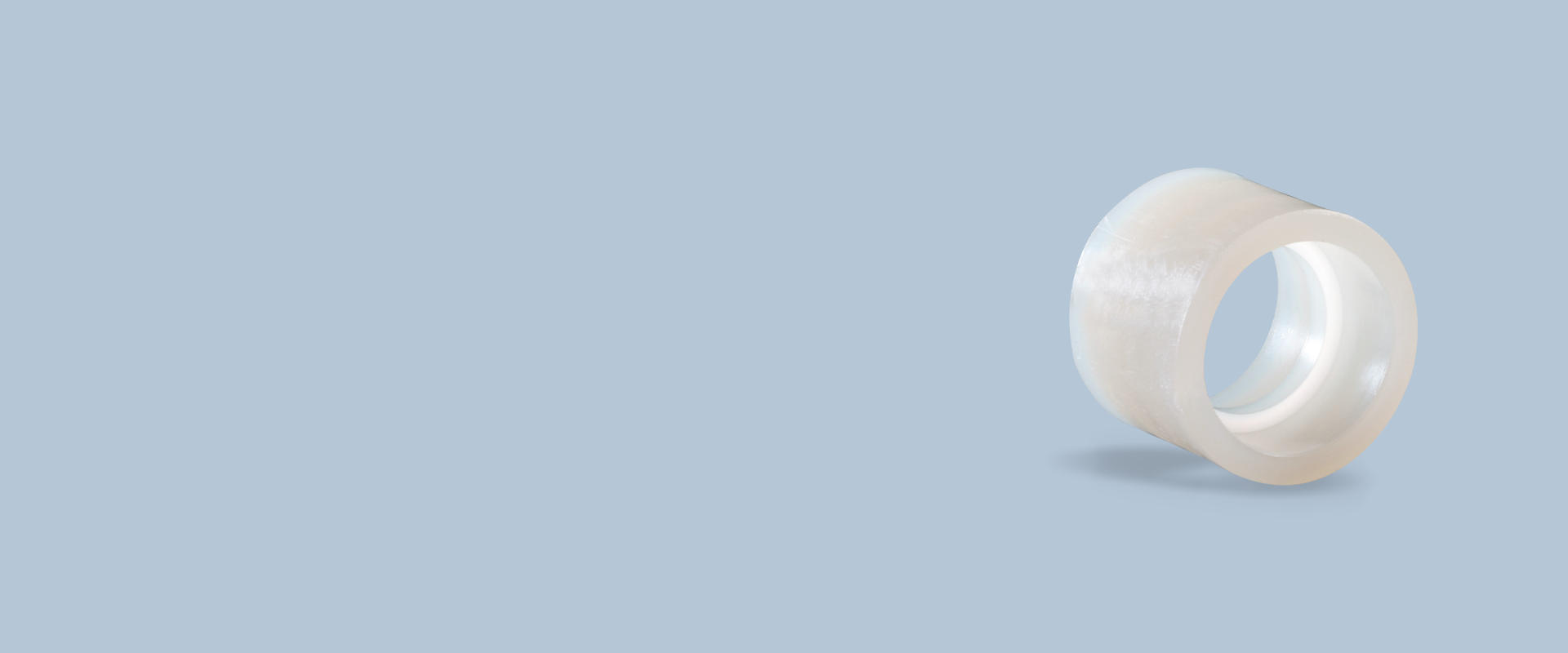

Thermoplastic Couplings
Valve Features
PN-10

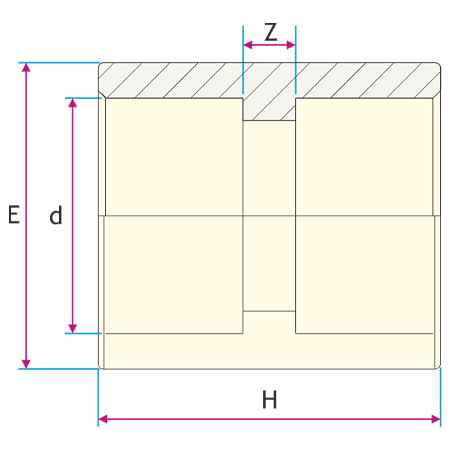

| Size (OD) | E | d | H | Z |
|---|---|---|---|---|
| 20 MM | 31 | 20 | 35 | 7 |
| 25 MM | 36 | 25 | 39 | 7 |
| 32 MM | 44 | 32 | 43 | 7 |
| 50 MM | 66 | 50 | 54 | 8 |
| 63 MM | 82 | 63 | 62 | 8 |
| 90 MM | 112 | 90 | 81 | 10 |
| 110 MM | 135 | 110 | 96 | 12 |
| 160 MM | 188 | 160 | 120 | 15 |
