Valve Solutions For Corrosive Applications

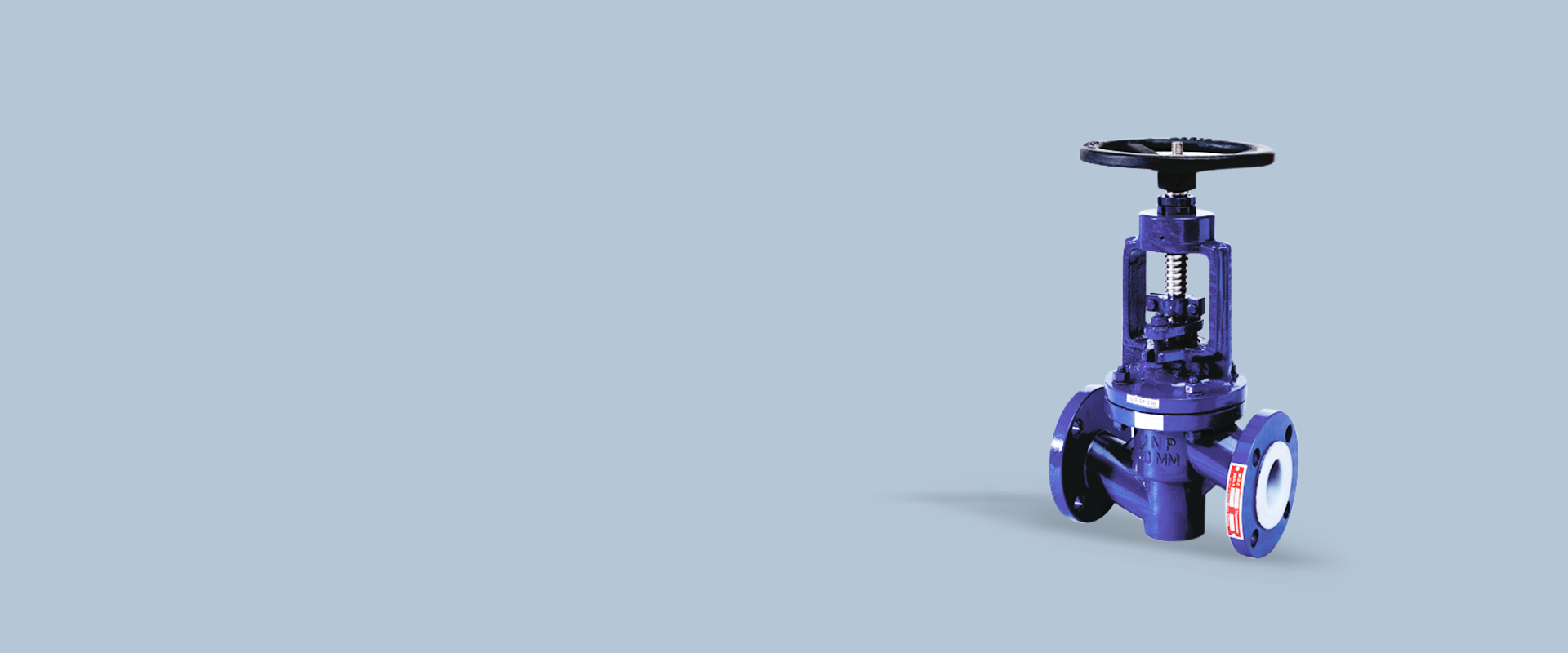

Lined Globe Valve
Design Std
BS EN 17292
Shell Design
ANSI B 16.34
Face To Face Dim.
ANSI B 16.1
Flange Connection Rating
ANSI B 16.5, 150# / DIN PN 10 /
JIS
Testing Standard
API 598 / BS EN 12266-1
Connection
FLANGED, RF
Valve Solutions For Corrosive Applications
Lined Globe Valve
Specifications
Lined Globe Valve
Design Std
BS EN 17292
Shell Design
ANSI B 16.34
Face To Face Dim.
ANSI B 16.1
Flange Connection Rating
ANSI B 16.5, 150# / DIN PN 10 / JIS
Testing Standard
API 598 / BS EN 12266-1
Connection
FLANGED, RF
Valve Features
Part List
| PART NO. | DESCRIPTION | MATERIAL OF CONSTRUCTION | QTY |
|---|---|---|---|
| 1 | Body | GR.WCB + PFA LINED | 1 |
| 2 | Bonnet / Yoke | GR.WCB + PFA LINED | 1 |
| 3 | Plug With Integral Stem | SS 304 + PFA LINED | 1 |
| 4 | Spindle | SS 304 | 1 |
| 5 | Gland Cover | ASTM A 216 GR. WCB | 1 |
| 6 | Chevron Packing | PTFE | 4 |
| 7 | Saddle Nuts | SS 304 | 2 |
| 8 | Saddle | ASTM A 216 GR. WCB | 1 |
| 9 | Stem Sleeve | SS 304 | 1 |
| 10 | Saddle Allen Bolts | HT STEEL GR. 10.9 | 1 |
| 11 | Saddle Bolt Washers | STEEL | 2 |
| 12 | Grub Screws For Sleeve | HT | 2 |
| 13 | Body Bolts | ASTM A 193 GR. B7 | 4-6 |
| 14 | Body Bolt Washers | STEEL | 4-6 |
| 15 | Stem Lock Nuts | SS 304 | 2 |
| 16 | Hand Wheel | CARBON STEEL | 1 |
| 17 | Handwheel Washer | STEEL | 1 |
| 18 | Handwheel Nut | SS 304 | 1 |
Product Design & Tests Performed
| TESTS PERFORMED | EN 12266-1 |
|---|---|
| Sizes | 0.5"- 4" |
| High Pressure Shell Test Hydro | 225 PSI |
| High Pressure Seat Test Hydro | 165 PSI |
| Low Pressure Seat Test Pneumatic | 75 PSI |
| SPARK TEST | KVDC |
|---|---|
| Testing Done At | 20 KDVC |
| MATERIAL | OPTIONS AVAILABLE |
|---|---|
| Castings | ASTM A 216 GR. WCB, ASTM A 351 GR. CF8 / CF8M, HASTELLOY C 276 / INCONEL |
| Lining Materials | PFA/FEP/ETFE/PVDF/PPH |
Dimension Table
| Size (NB) | L ±.0.12 | d ±0.04 | D1 ±0.08 | D ±0.08 | K ±0.08 | T ±0.05 | H1 ±0.10 | n | ø | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | ||
| 0.5" | 5.11 | 130 | 0.49 | 12.5 | 1.37 | 35 | 3.74 | 95 | 2.36 | 60 | 0.59 | 15 | 10.4 | 265 | 4 | 5/8 | 16 |
| 0.75" | 5.9 | 150 | 0.74 | 19 | 1.69 | 43 | 4.13 | 105 | 2.75 | 70 | 0.59 | 15 | 10.4 | 265 | 4 | 5/8 | 16 |
| 1" | 6.29 | 160 | 0.98 | 25 | 2.48 | 51 | 4.25 | 108 | 3.1 | 79 | 0.61 | 15.5 | 11.6 | 295 | 4 | 5/8 | 16 |
| 1.5" | 7.87 | 200 | 1.49 | 38 | 2.87 | 73 | 5.07 | 129 | 3.85 | 98 | 0.82 | 21 | 14.3 | 365 | 4 | 5/8 | 16 |
| 2" | 9.05 | 230 | 1.96 | 50 | 3.62 | 92 | 6.06 | 154 | 4.76 | 121 | 0.82 | 21 | 15.4 | 393 | 4 | 3/4 | 19 |
| 3" | 12.2 | 310 | 2.95 | 75 | 5 | 127 | 7.48 | 190 | 6 | 152.5 | 0.98 | 25 | 18.3 | 465 | 4 | 3/4 | 19 |
| 4" | 13.77 | 350 | 3.93 | 100 | 6.18 | 157 | 9.01 | 229 | 7.5 | 191 | 1.06 | 27 | 21.5 | 547 | 8 | 3/4 | 19 |
-
A. Valve Net Weight
Size Ball Check Valve KGS LBS 0.5 4.9 10.8 0.75 5.8 12.8 1 7 15.4 1.5 12 26.4 2 16.5 36.3 2.5 28 61.6 3 30.5 67.1 4 45 99 -
B. PRESSURE - TEMPERATURE GRAPH
Code GLBVC1T2L1XXF1HWY02 Valve Type GLOBE VALVE GLBV Casting ASTM A 216 GR. WCB C1 Trim SS+PFA LINED T2 Lining Material PFA L1 Seat INTGRAL PFA XX Fastener STEEL PLATED F1 Operation HAND WHEEL HW Locking Arrangement PROVIDED Y Size 2" 2 Valve Code Used
VALVE TYP CODE Globe Valve GLBV Ball Check Valve BCKV Swing Check Valve SCKV Sight Glass - Tubular/Full View SGFV Sight Glass - Double Window SGDW Sampling Valve - Flanged SMVF Sampling Valve- Sandwich SMVS Y Type Strainer YSTR TRIM INSERS CODE ASTM A216 Gr WCB T1 ASTM A351 CF8 (SS 304) T2 ASTM A351 CF8M (SS316) T3 Alloy 20 T4 Duplex T5 Super Duplex T6 PTFE T7 PTFE + PVDF + EPDM T8 AISI410 T9 EPDM TE HASTELLOY C HC CASTING CODE ASTM A216 Gr WCB C1 ASTM A351 CF8 (SS 304) C2 ASTM A351 CF8M (SS316) C3 Alloy 20 C4 Duplex C5 Super Duplex C6 Hastelloy C C7 Glass GL LOCKING ARRANGMENT CODE YES Y NO N NOT APPLICABLE X SEAT CODE PTFE PT PTFE WITH SILICON PAD PS PTFE WITH VITON PAD PV TFM WITH SILICON PAD TS TFM WITH VITON PAD TV NOT APPLICABLE XX FASTENERS CODE STEEL PLATED F1 SS304 F2 SS316 F3 High Tensile F4 ASTM A193 GR B7 F5 BRASS F6 LINING MATERIAL CODE PFA L1 FEP L2 PVDF L3 ETFE L4 ECTFE L5 PPH L6 Antistatic PFA L7 OPERATION CODE LEVER L GEAR G BARE STEM B HAND WHEEL H SELF OPERATING S SIZE 0.5" 0.75" 1" 1.5" 2" 2.5" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24" CODE 0H 75 01 1H 02 2H 03 04 05 06 08 10 12 14 16 18 20 24
