Valve Solutions For Corrosive Applications

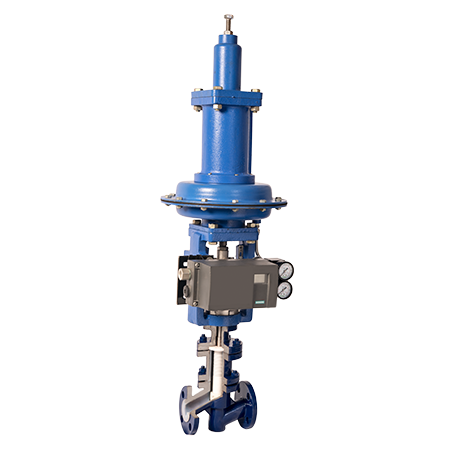

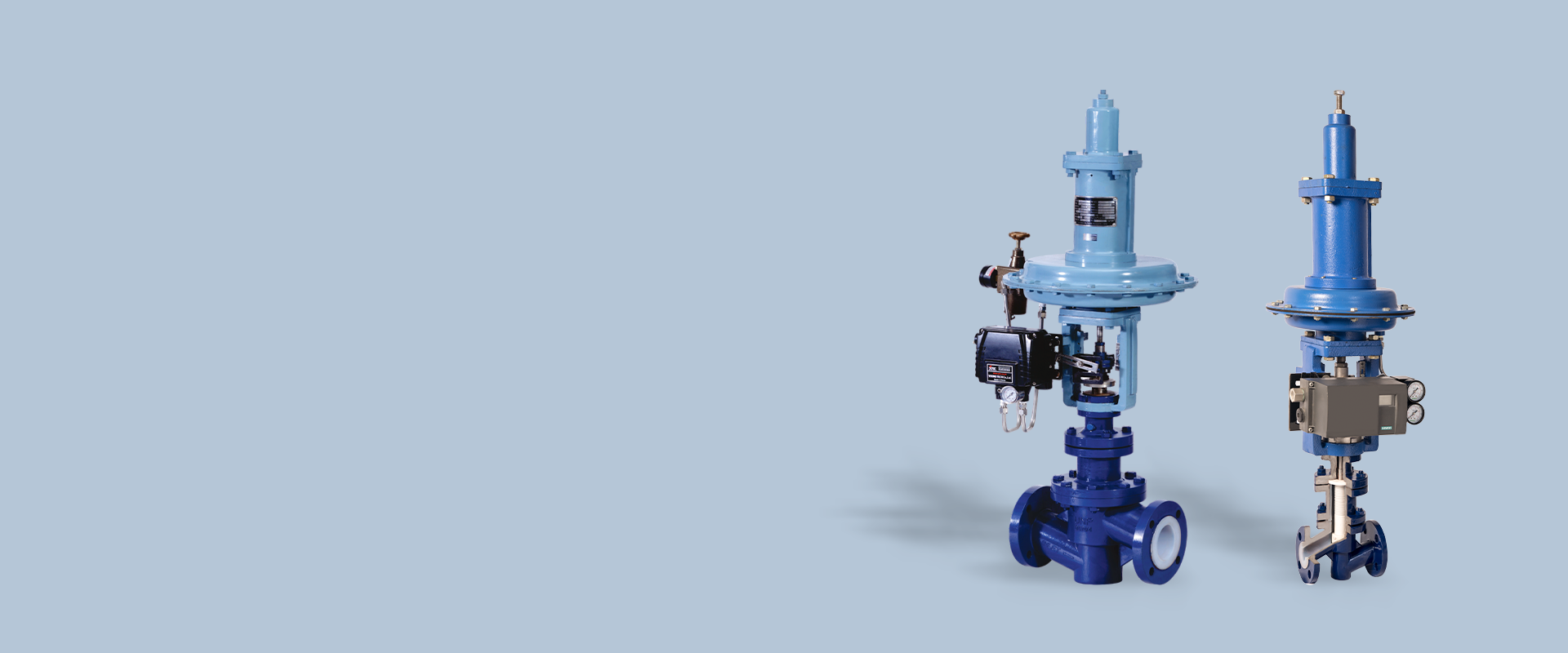

Control Globe Control Valve
Valve Features
PART LIST
| PART NO. | DESCRIPTION | MATERIAL OF CONSTRUCTION | QTY. |
|---|---|---|---|
| 1 | Body | ASTM A 216 GR.WCB + PFA LINED | 1 |
| 2 | Bonnet | ASTM A 216 GR.WCB BOLTED | 1 |
| 3 | Bellow | PTFE | 1 |
| 4 | Stem | SS 316 | 1 |
| 5 | Adaptor | CS + PFA + LINED | 1 |
| 6 | Fasteners | SS 304 | 1 |
| 7 | Actuator | CI EPOXY PAINTED | 1 |
| 8 | Yoke | CI EPOXY PAINTED | 1 |
| 9 | Positioner | CUSTOMER REQUIREMENT | 1 |
| 10 | AFR | CUSTOMER REQUIREMENT | 1 |
| 11 | Tubing | SS 304 | 1 |
| MATERIAL | OPTIONS AVAILABLE |
|---|---|
| Castings | ASTM A 216 GR. WCB, ASTM A 351 GR. CF8 / CF8M, HASTELLOY C 276 / INCONEL |
| Lining Materials | PFA/FEP/ETFE/PVDF/PPH |
PRODUCT DESIGN AND TESTS PERFORMED
| DESIGN PARAMETERS | STANDARD |
|---|---|
| Design Standard | API 600 / BS 18 73 |
| Shell Design | ANSI B 16.34 |
| Face To Face Dimensions | EN 558- SERIES 1 |
| Flange Connection Rating | ANSI B 16.5 150# / DIN PN 10 |
| Testing Standard | BS EN 12266-1 |
| Connection | FLANGED, RF |
| TESTS PERFORMED | EN 12266-1 | EN 12266-1 |
|---|---|---|
| Sizes | 0.5" - 4" | 5"- 8" |
| High Pressure Shell Test Hydro | 225 PSI | 135 PSI |
| High Pressure Seat Test Hydro | 165 PSI | 105 PSI |
| Low Pressure Seat Test Pneumatic | 75 PSI | 75 PSI |
| SPARK TEST | KVDC |
|---|---|
| Testing Done At | 20 KVDC |
Dimension Table
| Size (NB) | A ±0.11 | d ±0.04 | D1 ±0.04 | D ±0.04 | K ±0.062 | T ±11/0.00 | n | ø | B ±0.00 | C ±0.00 | øE | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | ||
| 0.5" | 5.11 | 130 | 0.49 | 12.5 | 1.37 | 35 | 3.74 | 95 | 2.36 | 60 | 0.59 | 15 | 4 | 5/8 | 16 | 6.5 | 165 | 26.3 | 670 | 11.4 | 290 |
| 0.75" | 5.9 | 150 | 0.74 | 19 | 1.69 | 43 | 4.13 | 105 | 2.75 | 70 | 0.59 | 15 | 4 | 5/8 | 16 | 7.16 | 182 | 26.3 | 670 | 11.4 | 290 |
| 1" | 6.2 | 160 | 0.98 | 25 | 2 | 51 | 4.25 | 108 | 3.11 | 79 | 0.49 | 12.5 | 4 | 5/8 | 16 | 7.16 | 182 | 26.3 | 670 | 11.4 | 290 |
| 1.5" | 7.87 | 200 | 1.5 | 38 | 2.87 | 73 | 5 | 127 | 3.86 | 98 | 0.7 | 18 | 4 | 5/8 | 16 | 9.76 | 248 | 26.3 | 670 | 11.4 | 290 |
| 2" | 9 | 230 | 1.97 | 50 | 3.62 | 92 | 5.98 | 152 | 4.76 | 121 | 0.7 | 18 | 4 | 3/4 | 19 | 10.1 | 258 | 26.3 | 670 | 11.4 | 290 |
| 3" | 12.2 | 310 | 2.95 | 75 | 5 | 127 | 7.48 | 190 | 5.98 | 152 | 0.86 | 22 | 8 | 3/4 | 19 | 11.4 | 290 | 27.4 | 697 | 15 | 382 |
| 4" | 13.7 | 350 | 3.7 | 100 | 6.18 | 157 | 9.01 | 229 | 7.52 | 191 | 0.94 | 24 | 8 | 3/4 | 19 | 13 | 331 | 27.4 | 697 | 15 | 382 |
VALVE NET WEIGHTS
| Size | KGS | LBS |
|---|---|---|
| 0.5 | 34.9 | 76.8 |
| 0.75 | 35.8 | 78.8 |
| 1 | 37 | 81.4 |
| 1.5 | 42 | 92.4 |
| 2 | 46.5 | 102.3 |
| 2.5 | 63 | 138.6 |
| 3 | 65.6 | 144.4 |
| 4 | 80 | 176 |
VALVE CODE USED
| VALVE TYPE | CODE | |
|---|---|---|
| Globe Valve | GLBV | |
| Ball Check Valve | BCKV | |
| Swing Check Valve | SCKV | |
| Sight Glass - Tubular/Full View | SGFV | |
| Sight Glass - Double Window | SGDW | |
| Sampling Valve - Flanged | SMVF | |
| Sampling Valve- Sandwich | SMVS | |
| Y Type Strainer | YSTR | |
| TRIM INSERTS | CODE | |
|---|---|---|
| ASTM A216 Gr WCB | T1 | |
| ASTM A351 CF8 (SS 304) | T2 | |
| ASTM A351 CF8M (SS316) | T3 | |
| Alloy 20 | T4 | |
| Duplex | T5 | |
| Super Duplex | T6 | |
| PTFE | T7 | |
| PTFE + PVDF + EPDM | T8 | |
| AISI410 | T9 | |
| EPDM | TE | |
| HASTELLOY C | HC | |
VALVE CODE USED
| CASTING | CODE |
|---|---|
| ASTM A216 Gr WCB | C1 |
| ASTM A351 CF8 (SS 304) | C2 |
| ASTM A351 CF8M (SS316) | C3 |
| Alloy 20 | C4 |
| Duplex | C5 |
| Super Duplex | C6 |
| Hastelloy C | C7 |
| Glass | GL |
| SEAT | CODE |
|---|---|
| PTFE | PT |
| PTFE WITH SILICON PAD | PS |
| PTFE WITH VITON PAD | PV |
| TFM WITH SILICON PAD | TS |
| TFM WITH VITON PAD | TV |
| NOT APPLICABLE | XX |
| FASTENERS | CODE |
|---|---|
| STEEL PLATED | F1 |
| SS304 | F2 |
| SS316 | F3 |
| High Tensile | F4 |
| ASTM A193 GR B7 | F5 |
| BRASS | F6 |
| LINING MATERIAL | CODE |
|---|---|
| PFA | L1 |
| FEP | L2 |
| PVDF | L3 |
| ETFE | L4 |
| ECTFE | L5 |
| PPH | L6 |
| Antistatic PFA | L7 |
| LOCKING ARRANGMENT | CODE |
|---|---|
| YES | Y |
| NO | N |
| NOT APPLICABLE | X |
| SIZE | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5" | 0.75" | 1" | 1.5" | 2" | 2.5" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
| CODE | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0H | 75 | 01 | 1H | 02 | 2H | 03 | 04 | 05 | 06 | 08 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
