Valve Solutions For Corrosive Applications

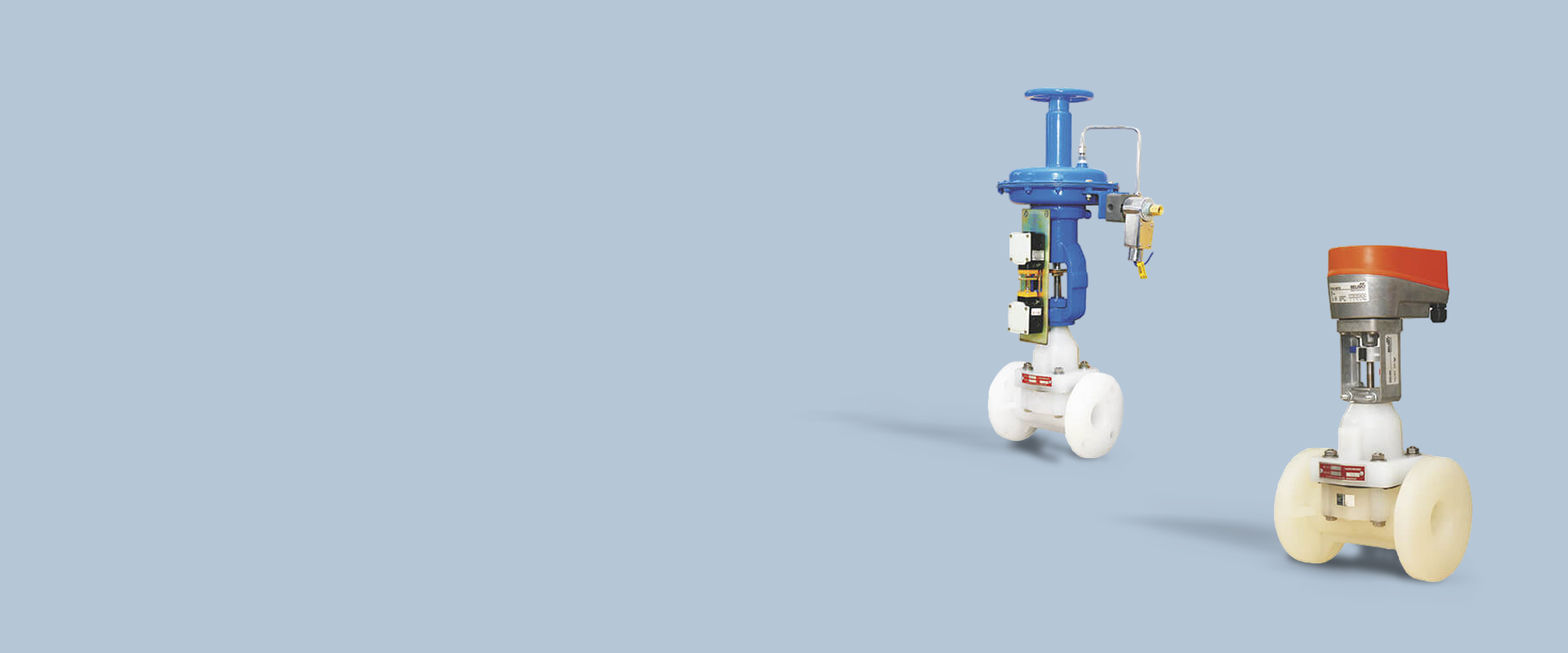

Actuated Thermoplastic Diaphragm Valve
Valve Solutions For Corrosive Applications
Actuated Thermoplastic Diaphragm Valve
Valve Features

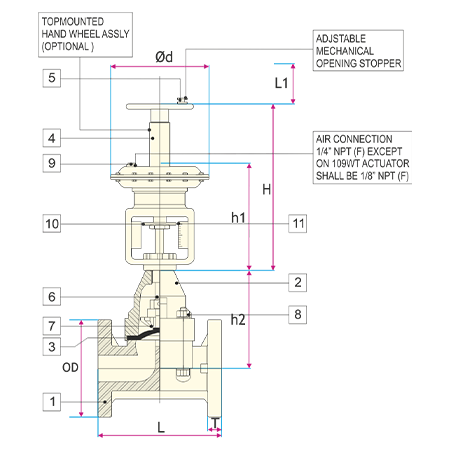

Material Specification
| No. | Description | Qty. | Material |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP / PPH / PVDF |
| 2 | BONNET | 1 | PP / CI / CS EPOXY PAINTED |
| 3 | DIAPHRAGM | 1 | EPDM / VITON / NEOPRENE / HYPALON / PTFE BACKED WITH NEOPRENE OR EPDM |
| 4 | HAND WHEEL ASSEMBLY | 1 | CI EPOXY PAINTED |
| 5 | AMS | 1 | MS EPOXY PAINTED |
| 6 | SPINDLE | 1 | SS - 202 /SS-304 / BRASS |
| 7 | COMPRESSOR | 1 | CAST ALUMINIUM / CI |
| 8 | FASTENERS | - | SS-304 / SS-316 / MS GALVANISED |
| 9 | AIR CONNECTION SOCKET | 1 | BRASS / SS |
| 10 | POSITION INDICATOR | 1 | BRASS / SS |
| 11 | INDICATOR SCALE | 1 | SS |
Dimension Table
| Size (NB) | L±3 | OD | T | H | h1 | h2 | d | L1 | MODEL NO. |
|---|---|---|---|---|---|---|---|---|---|
| 15 MM | 120 | 98 | 17 | 280 | 170 | 67 | 110 | 200 | 109WT |
| 20 MM | 142 | 120 | 17 | 280 | 170 | 75 | 110 | 200 | 109WT |
| 25 MM | 142 | 120 | 17 | 280 | 170 | 75 | 110 | 200 | 109WT |
| 40 MM | 78 | 140 | 8 | 430 | 295 | 140 | 185 | 200 | 1018WT |
| 50 MM | 213 | 160 | 19 | 440 | 330 | 165 | 235 | 200 | 1035WT |
| 65 MM | 255 | 200 | 24 | 540 | 315 | 203 | 330 | 250 | 1002WT |
| 80 MM | 255 | 200 | 24 | 540 | 315 | 203 | 330 | 250 | 1002WT |
| 100 MM | 312 | 228 | 25 | 560 | 330 | 255 | 390 | 250 | 1003WT |
| 150 MM | 408 | 280 | 26 | 770 | 470 | 395 | 600 | 310 | 1005WT |
