Valve Solutions For Corrosive Applications

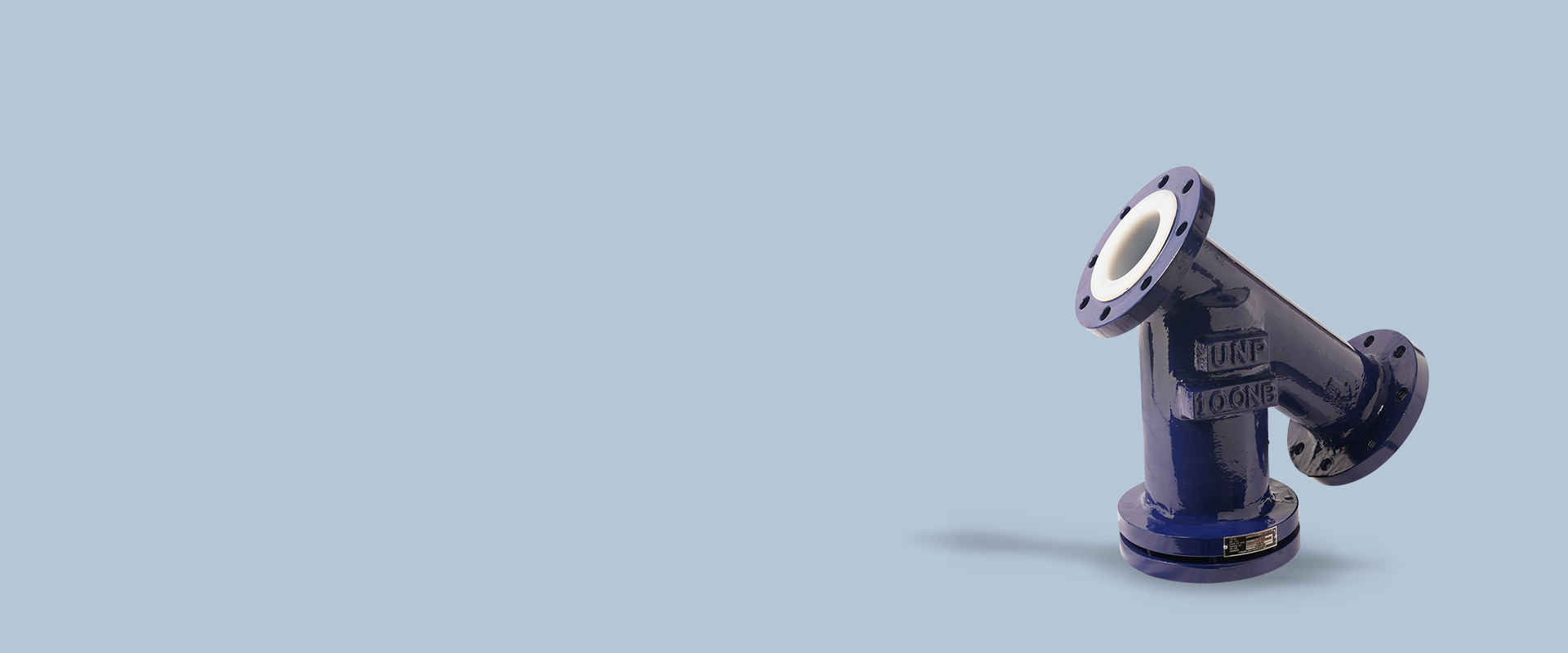

Lined "Y" Type Strainer

Inquire Now Download

Valve Features

Product Design & Tests Performed

DESIGN PARAMETERS STANDARD
Design Standard Shell Design Face To Face Dimensions Flange Connection Rating Testing Standard Connection MANUFACTURER'S STANDARD ANSI B 16.34 MFR'S STANDARD ANSI B 16.5 150# / DIN PN 10 BS EN 12266-1 FLANGED, RF
TESTS PERFORMED EN 12266-1
Sizes High Pressure Shell Test Hydro 1" - 8" 150 PSI
SPARK TEST KVDC
Testing Done At 20 KVDC
MATERIAl OPTIONS AVAILABLE
Castings ASTM A 216 GR. WCB, ASTM A 351 GR. CF8 / CF8M, HASTELLOY C 276 / INCONEL
Lining Materials PFA/FEP/ETFE/PVDF/PPH

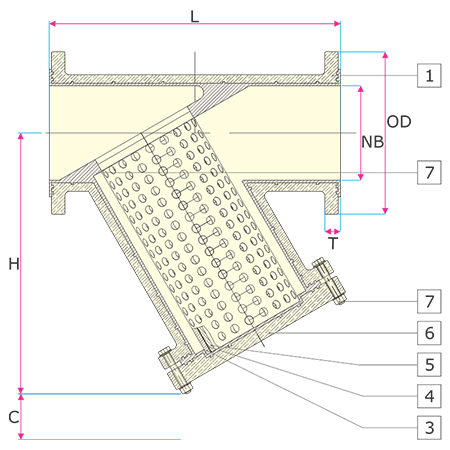

Part List

Part No. Description Material of Construction Qty
1 Shell ASTM A 216 GR.WCB + PFA LINED LINNING THK. MIN. 3MM 1
2 Seat INTEGRAL-PFA 1
3 Outer Tube PTFE 1
4 Filter Web ETFE 40 MESH 1
5 Inner Tube PTFE 1
6 Shell Cover CS + PFA LINED 4/8
7 Fasteners ASTM A 193 GR B7 / 2H 1
8 Locking Pin PTFE 1

Dimension Table

Size (NB) L±5 d D1 ±0.04 D ±0.04 H ±0.20 T ±0.20 / -0.00 K ±0.06 n ø CLEARANCE C
INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH MM
0.75" 7.48 190 0.51 13 1.69 43 3.86 98 5.11 130 0.63 16 2.75 70 4 5/8 16 7.87 200
1" 7.48 190 0.98 25 2.01 51 4.25 108 5.11 130 0.67 17 3.11 79 4 5/8 16 7.87 200
1.5" 10.43 265 1.5 38 2.87 73 5 127 9.44 240 0.75 17 3.86 98 4 5/8 16 7.87 200
2" 11.18 284 1.97 50 3.62 92 5.98 152 9.44 240 0.75 19 4.76 121 4 3/4 19 7.87 200
2.5" 12.6 320 2.56 65 4.13 105 7 178 9.44 240 0.87 22 5.51 140 4 3/4 19 7.87 200
3" 13.78 350 2.95 75 5 127 7.5 191 9.84 250 0.9 23 5.98 152 4 3/4 19 7.87 200
4" 16.34 415 3.94 100 6.18 157 9.05 230 12.2 310 0.9 23 7.52 191 8 3/4 19 11.81 300
6" 20.47 520 5.9 150 8.5 216 11.02 280 15.27 388 0.98 25 9.49 241 8 7/8 22 11.81 300
8" 23.82 605 7.87 200 10.62 270 13.5 343 23.03 585 1.1 28 11.73 298 8 7/8 22 13.78 350

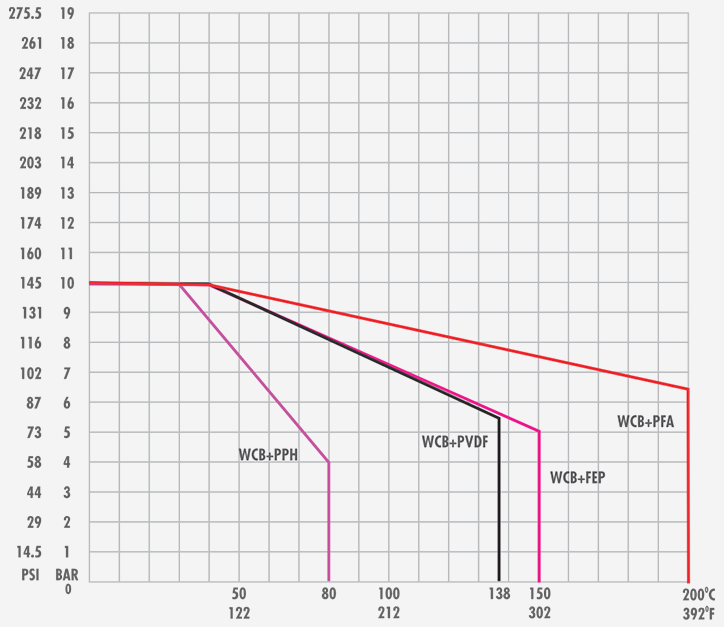

  • A. PRESSURE - TEMPERATURE GRAPH

    HOW TO READ

    Material Description CODE
    Valve Type Y TYPE STRAINER YSTR
    Casting ASTM A216 GR WCB C1
    Trim PTFE T7
    Lining Material PFA L1
    Seat INTEGRAL PFA XX
    Fastener STEEL PLATED F1
    Operation SELF OPERATING S
    Locking Arrangement NOT APPLICABLE X
    Size 2" 2

    VALVE CODE USED

    VALVE TYPE CODE
    Globe Valve GLBV
    Ball Check Valve BCKV
    Swing Check Valve SCKV
    Sight Glass - Tubular/Full View SGFV
    Sight Glass - Double Window SGDW
    Sampling Valve - Flanged SMVF
    Sampling Valve- Sandwich SMVS
    Y Type Strainer YSTR
    TRIM INSERTS CODE
    ASTM A216 Gr WCB T1
    ASTM A351 CF8 (SS 304) T2
    ASTM A351 CF8M (SS316) T3
    Alloy 20 T4
    Duplex T5
    Super Duplex T6
    PTFE T7
    PTFE + PVDF + EPDM T8
    AISI410 T9
    EPDM TE
    HASTELLOY C HC
    CASTING CODE
    ASTM A216 Gr WCB C1
    ASTM A351 CF8 (SS 304) C2
    ASTM A351 CF8M (SS316) C3
    Alloy 20 C4
    Duplex C5
    Super Duplex C6
    Hastelloy C C7
    Glass GL
    LOCKING ARRANGMENT CODE
    YES Y
    NO N
    NOT APPLICABLE X

    VALVE CODE USED

    SEAT CODE
    PTFE PT
    PTFE WITH SILICON PAD PS
    PTFE WITH VITON PAD PV
    TFM WITH SILICON PAD TS
    TFM WITH VITON PAD TV
    NOT APPLICABLE XX
    FASTENERS CODE
    STEEL PLATED F1
    SS304 F2
    SS316 F3
    High Tensile F4
    ASTM A193 GR B7 F5
    BRASS F6
    LINING MATERIAL CODE
    PFA L1
    FEP L2
    PVDF L3
    ETFE L4
    ECTFE L5
    PPH L6
    Antistatic PFA L7
    OPERATION CODE
    LEVER L
    GEAR G
    BARE STEM B
    HAND WHEEL H
    SELF OPERATING S
    SIZE
    0.5" 0.75" 1" 1.5" 2" 2.5" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24"
    CODE
    0H 75 01 1H 02 2H 03 04 05 06 08 10 12 14 16 18 20 24

  • B. VALVE NET WEIGHT

    Size ‘Y’ TYPE STRAINER VALVE
    KGS LBS
    0.5 - -
    0.75 5.2 11.5
    1 5.7 12.6
    1.5 9.5 21
    2 12.5 27.5
    2.5 29 63.8
    3 31.4 69.1
    4 44 96.8
    6 90 198
