Valve Solutions For Corrosive Applications

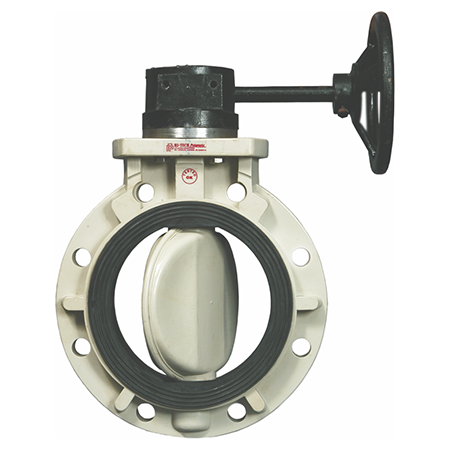

Butterfly Valve Gear Operated

Inquire Now Download

Valve Features

Material Specification

NO. DESCRIPTION QTY. MATERIAL
1 BODY 1 PP/ISO. PP /PVDF/UPVC/CPVC
2 SEAT 1 EPDM / VITON
3 DISC 1 PP/ISO. PP /PVDF/UPVC/CPVC
4 DISC 'O' RING 2 EPDM/VITON
5 DISC 'O' RING 2 EPDM/VITON
6 STEM 1 SS-410 / SS-304
7 STEM 'O' RING 2 EPDM/VITON
8 GEAR BOX 1 CAST IRON EPOXY PAINTED
9 GEAR BOX CAP 1 CAST IRON EPOXY PAINTED
10 ADJUSTABLE BOLT 2 SS-304
11 INDICATOR PLATE 1 CAST IRON EPOXY PAINTED
12 FASTENERS - MS GALVANISED / SS-304
13 HAND WHEEL 1 CAST IRON EPOXY PAINTED

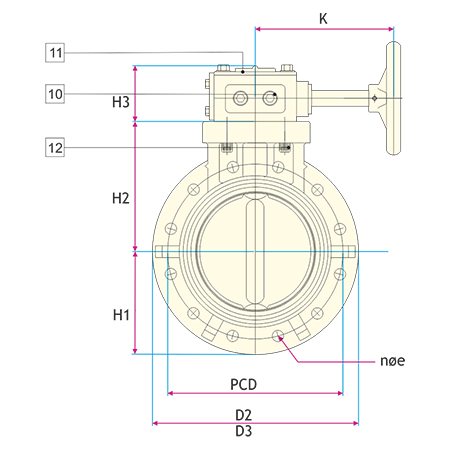

Dimensional Table

Size (MB) D1 D2 D3 0e n L L1 H1 H2 H3 K
150 MM 150 241 280 22 08 59 74 140 170 70 175
200 MM 200 298 338 22 08 76 88 169 210 70 175
250 MM 255 362 396 25 12 96 111 198 233 70 175
300 MM 312 432 478 2 12 116 132 239 289 103 212
350 MM 258 476 514 28 12 116 132 257 305 103 212
400 MM 398 540 594 28 16 153 169 297 353 103 212
450 MM 451 578 634 32 16 166 181 317 365 121 269
500 MM 500 635 704 32 20 171 190 352 405 121 330
600 MM 600 749 805 35 20 191 209 403 460 121 330
