Valve Solutions For Corrosive Applications

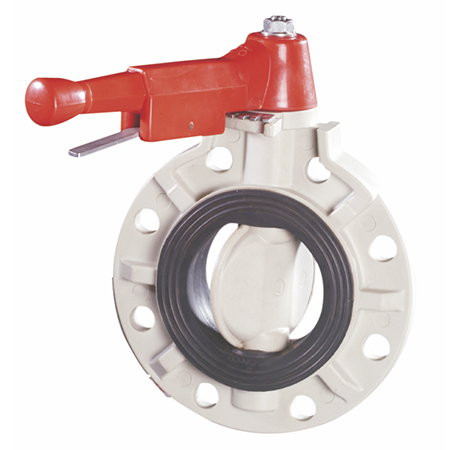

Butterfly Valve Lever Operated

Inquire Now Download

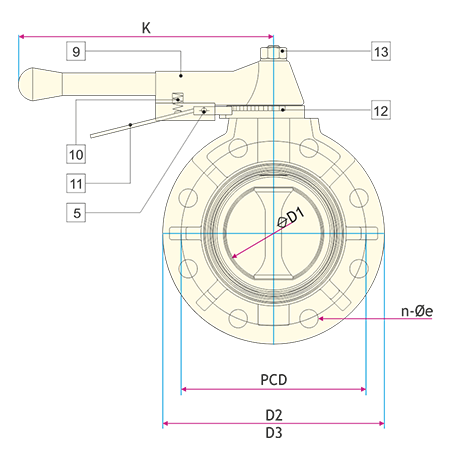

Valve Features

Material Specification

NO. DESCRIPTION QTY. MATERIAL
1 BODY 1 PP/ISO. PP /PVDF/UPVC/CPVC
2 DISC 1 PP/ISO. PP /PVDF/UPVC/CPVC
3 STEM 1 SS-410 / SS-304
4 STEM 'O' RING 2 EPDM/VITON
5 HINGE PIN 1 BRASS
6 SEAT 1 EPDM/VITON
7 DISC 'O' RING 2 EPDM/VITON
8 DISC 'O' RING 2 EPDM/VITON
9 HANDLE 1 ABS/PPGL
10 SPRING 1 SS-304
11 POSITIONER LEVER 1 SS-304
12 POSITIONER PLATE 1 SS-304
13 STEM NUT 1 SS-304

Dimensional Table

Size (NB) D1 D2 D3 0e n L L1 H1 H2 H3 I K
50 MM 51 121 160 19 04 35 42 83 102 68 253 220
65 MM 65 140 182 19 04 30 42 91 108 61 260 215
80 MM 80 152 200 19 04 37 46 100 118 68 286 220
100 MM 100 191 229 18 08 46 54 115 132 62 309 215
125 MM 130 216 250 22 08 57 66 127 160 96 383 310
150 MM 150 241 280 22 08 59 74 140 170 120 430 310
200 MM 200 298 338 22 08 76 88 169 210 96 475 415
