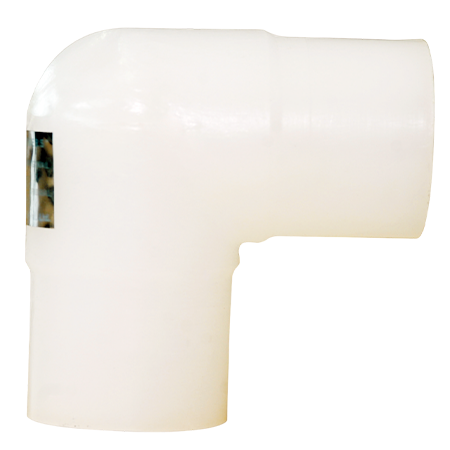

Elbows 90o PVDF Butt Weld Ends
Elbows 900
Dimension Table
| D | PN | E | L | L1 |
|---|---|---|---|---|
| 20mm | 16 | 1.9 | 38 | 16 |
| 25 MM | 16 | 1.9 | 42 | 16 |
| 32 MM | 16 | 2.4 | 46 | 18 |
| 40 MM | 16 | 2.4 | 51 | 18 |
| 50 MM | 16 | 3.0 | 58 | 20 |
| 63 MM | 16 | 3.0 | 66 | 20 |
