Valve Solutions For Corrosive Applications

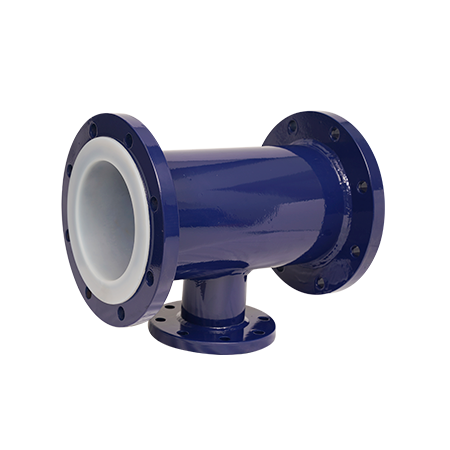

LINED UNEQUAL TEE

Inquire Now Download

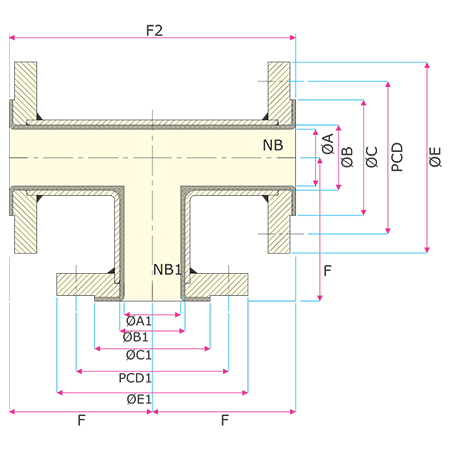

Valve Features

Dimensional Table

NB NB1 F F2
25 20 89 178
32 25/20 95 190
40 25 102 204
50 40/25 114 228
65 50/40 127 254
80 25/50 140 280
100 80 165 330
125 65/80/100 190 380
150 80/100/125 203 406
200 80/100/125/150 229 458
250 100/125/150/200 279 558
300 100/125/150/200/250 305 610
350 100/125/150/200/250 356 712
400 150/200/250/300/350 378 756
500 500 457 914
600 600 559 1118
