Pipes PP/ISO.PP/PPH Plain Ends
Valve Features

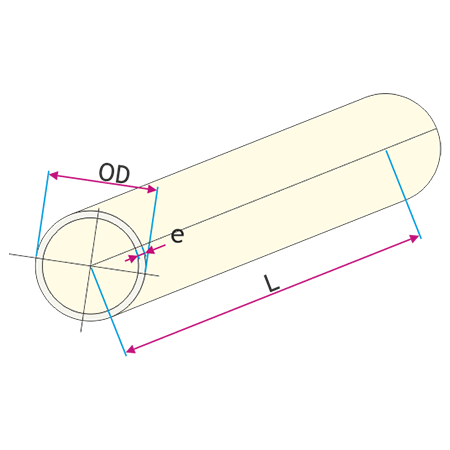

PP / ISO.PP Pipes Manufactured as per DIN 8007
| Size DN | Wall Series Normal Pressures | |||
|---|---|---|---|---|
| PN 2.5 | PN 4 | PN 6 | PN 10 | |
| OD | e mm | e mm | e mm | e mm |
| 20 MM | 1.8 | 2.5 | ||
| 25 MM | 1.8 | 2.7 | ||
| 32 MM | 2.0 | 3.0 | ||
| 40 MM | 2.3 | 3.7 | ||
| 50 MM | 1.8 | 2.0 | 2.9 | 4.6 |
| 63 MM | 1.8 | 2.5 | 3.6 | 5.8 |
| 75 MM | 1.9 | 2.9 | 4.3 | 6.9 |
| 90 MM | 2.2 | 3.5 | 5.1 | 8.2 |
| 110 MM | 2.7 | 4.3 | 6.3 | 10.0 |
| 125 MM | 3.1 | 4.9 | 7.1 | 11.4 |
| 140 MM | 3.5 | 5.4 | 8.0 | 12.8 |
| 160 MM | 3.9 | 6.2 | 9.1 | 14.6 |
| 180 MM | 4.4. | 7.0 | 10.2 | 16.4 |
| 200 MM | 4.9 | 7.7 | 11.4 | 18.2 |
| 225 MM | 5.5 | 8.7 | 12.8 | 20.5 |
| 250 MM | 6.1 | 9.7 | 14.2 | 22.8 |
| 280 MM | 6.9 | 10.8 | 15.9 | 25.5 |
| 315 MM | 7.7 | 12.2 | 17.9 | 28.7 |
