Valve Solutions For Corrosive Applications

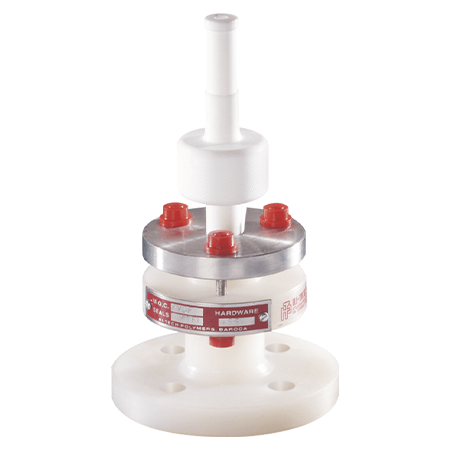

Sampling Valve Flanged Type
Valve Features
Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP/ PVDF /ETFE |
| 2 | MATERIAL PORT | 1 | PTFE |
| 3 | CHEVRON PACKING | 1 | PTFE |
| 4 | SOCKET | 1 | PTFE |
| 5 | LOCK PLATE | 1 | SS-304 |
| 6 | COMPANION FLANGE | 1 | SS-304 |
| 7 | SPINDLE | 1 | PTFE |
| 8 | FASTENERS | - | SS-304 |

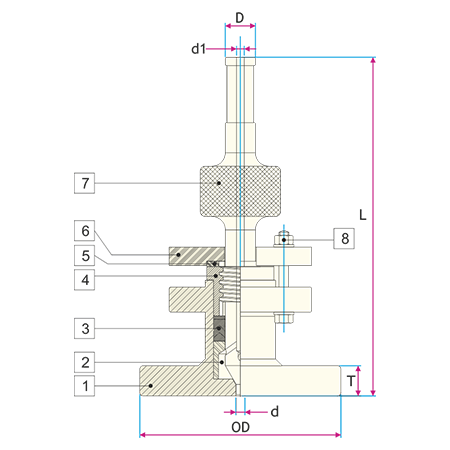

Dimensional Table
| Size (NB) | L±3 | OD | D | d | d1 | T |
|---|---|---|---|---|---|---|
| 25 MM | 200 | 120 | 18 | 6 | 6 | 17 |
