Valve Solutions For Corrosive Applications

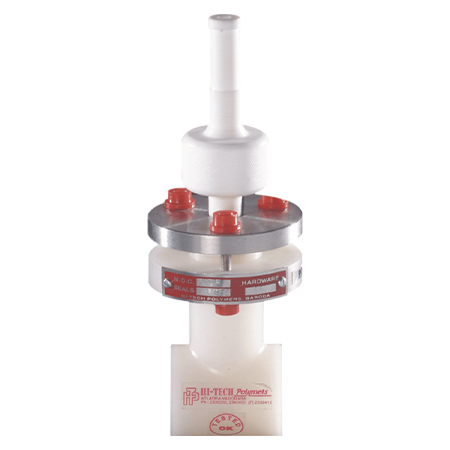

Sampling Valve Sandwich Type

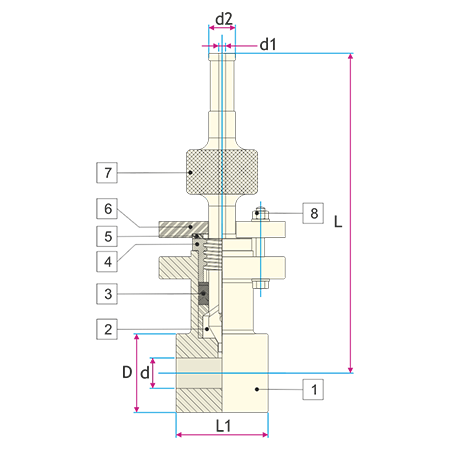

Valve Features
Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP/ PVDF /ETFE |
| 2 | MATERIAL PORT | 1 | PTFE |
| 3 | CHEVRON PACKING | 1 | PTFE |
| 4 | SOCKET | 1 | PTFE |
| 5 | LOCK PLATE | 1 | SS-304 |
| 6 | COMPANION FLANGE | 1 | SS-304 |
| 7 | SPINDLE | 1 | PTFE |
| 8 | FASTENERS | - | SS-304 |
Dimensional Table
| Size (NB) | L±3 | L1 | D | d | d1 | d2 |
|---|---|---|---|---|---|---|
| 25 MM | 212 | 62 | 52 | 22 | 6 | 18 |
