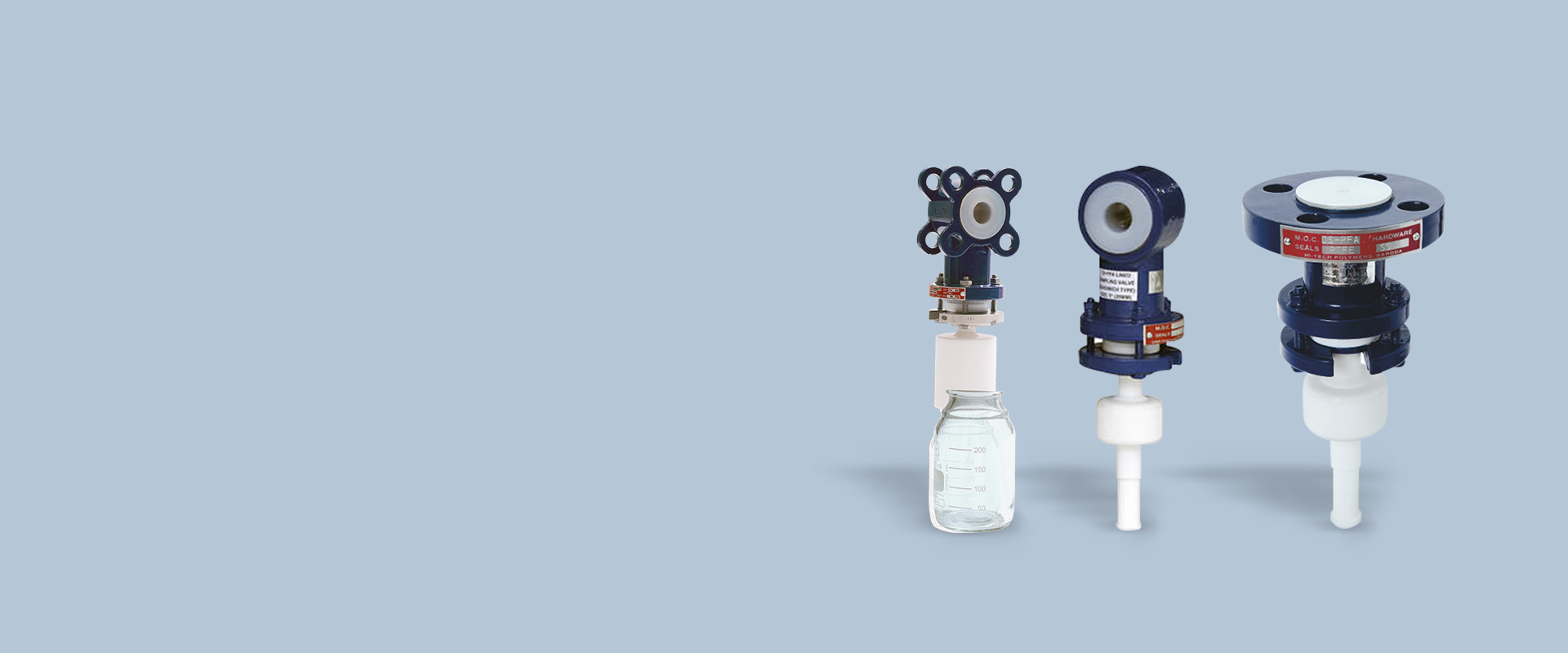

Sampling Valve Sandwich Wafer
Design Std
Manufacturer's Standard
Shell Design
ANSI B 16.34
Face To Face Dim.
MFR'S Standrad
Flange Connection Rating
ANSI B 16.5 150# / DIN PN 10
Testing Standard
BS EN 12266-1
Connection
FLANGED, RF
Valve Solutions For Corrosive Applications
Sampling Valve Sandwich Wafer
Specifications
Sampling Valve Sandwich Wafer
Design Std
Manufacturer's Standard
Shell Design
ANSI B 16.34
Face To Face Dim.
MFR'S Standrad
Flange Connection Rating
ANSI B 16.5 150# / DIN PN 10
Testing Standard
BS EN 12266-1
Connection
FLANGED, RF
Valve Features
Part List
| PART NO. | DESCRIPTION | MATERIAL OF CONSTRUCTION | QTY. |
|---|---|---|---|
| 1 | Body | ASTM A 216 GR.WCB + PFA LINED | 1 |
| 2 | Material Port | PTFE | 1 |
| 3 | Chevron Packing | PTFE | 1 |
| 4 | Socket | PTFE | 1 |
| 5 | Lock Plate | SS 304 | 1 |
| 6 | Companion Flange | SS 304 | 1 |
| 7 | Fasteners | SS 304 | 3 |
| 8 | Spindle | PTFE | 1 |
Product Design & Tests Performed
| TESTS PERFORMED | EN 12266-1 | EN 12266-1 |
|---|---|---|
| Sizes | 1" - 2" | |
| High Pressure Shell Test Hydro | 75 PSI | |
| SPARK TEST | KVDC |
|---|---|
| Testing Done At | 20 KDVC |
| MATERIAL | OPTIONS AVAILABLE |
|---|---|
| Castings | ASTM A 216 GR. WCB, ASTM A 351 GR. CF8 / CF8M, HASTELLOY C 276 / INCONEL |
| Lining Materials | PFA/FEP/ETFE/PVDF/PPH |
Dimension Table
| Size (NB) | A ±0.12 | L1 ±0.12 | d ±0.02 | d1 | d2 | D1 ±0.04 | D3 ±0.04 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | |
| 1" | 8.27 | 210 | 2.36 | 60 | 0.79 | 20 | 0.24 | 6 | 0.71 | 18 | 2 | 51 | 2.44 | 62 |
| 2" | 9.05 | 230 | 2.36 | 60 | 1.97 | 50 | 0.24 | 6 | 0.71 | 18 | 3.62 | 92 | 3.74 | 95 |
-
A. Valve Net Weight
Size KGS LBS 0.5 - - 0.75 - - 1 1.8 4 1.5 - - 2 3 6.6 2.5 - - -

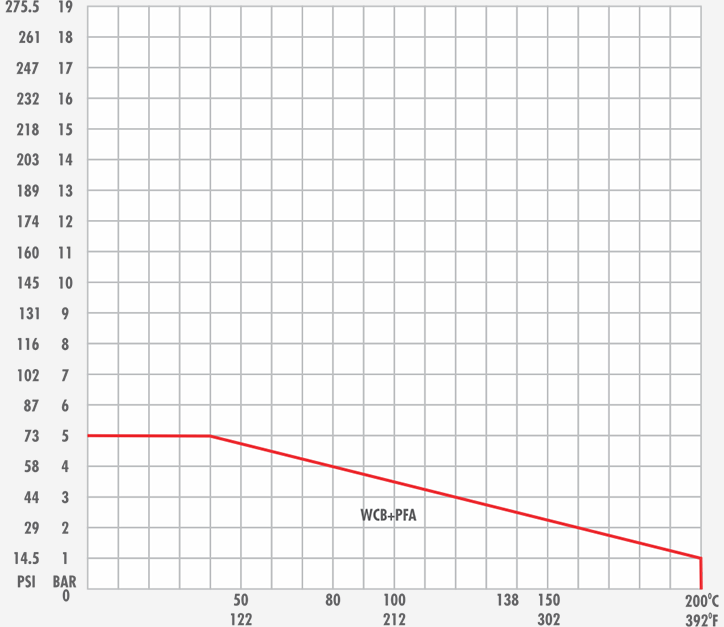

B. PRESSURE - TEMPERATURE GRAPH
Code SMVFC1PTL1XXF1LX01CODE Valve Type SAMPLING VALVE SANDWICH SMVF Casting ASTM A 216 GR. WCB C1 Trim PTFE PT Lining Material PFA L1 Seat INTGRAL PFA XX Fastener STEEL PLATED F1 Operation LEVER L Locking Arrangement NOT APPLICABLE X Size 1" 1 Valve Code Used
