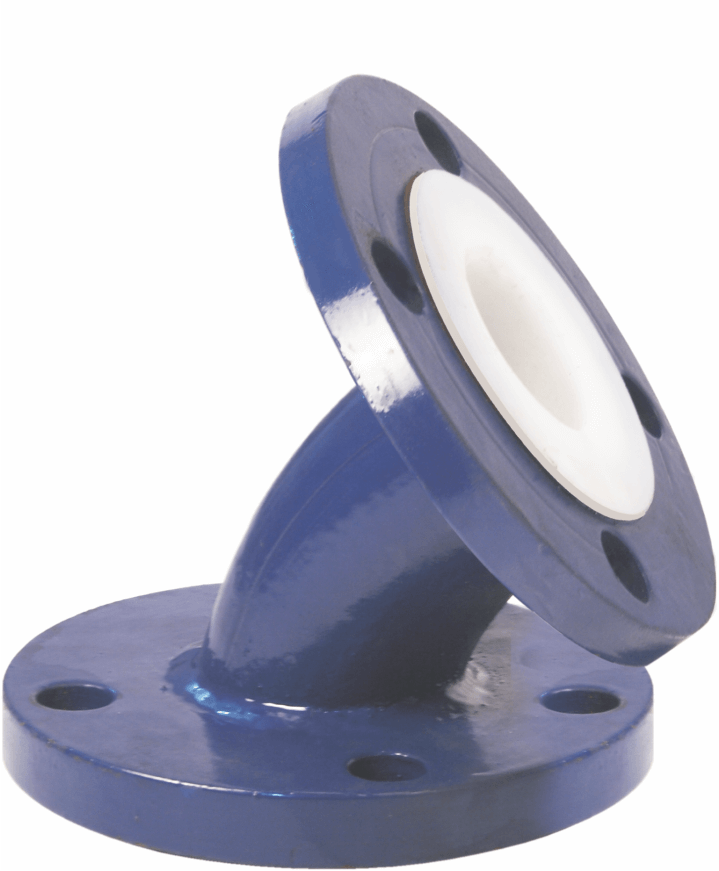

Lined Elbow 90⁰ Lined Elbow 45⁰

Valve Features

Dimensional Table

Size	L -ID(Ød)		ØR/F (0B)		F.OD(ØD)		F.THIK (G)		P.C.D (K)		H - DIA (Øe)		NH (n)	LINING THK (S)		F		WPB ELBOW (SCH)
	INCH	MM	INCH	MM	INCH	MM	INCH	MM	INCH	MM	INCH	MM		INCH	MM	INCH	MM
	0.079	±2	0.079	±2					0.06	±1.6						0.059	±1.5
1/2"	0.39	10	1.37	34.9	3.50	88.9	0.44	11.1	2.37	60.3	0.63	15.9	04	0.126	3.2	2.56	65	40
3/4"	0.59	15	1.68	42.7	3.87	98.4	0.50	12.7	2.75	69.8	0.63	15.9	04	0.126	3.2	2.95	75	40
1"	0.79	20	2.01	51	4.25	108	0.56	14.2	3.13	79.4	0.63	15.9	04	0.126	3.2	3.50	89	40
1.5"	1.34	34	2.87	73	5.00	127	0.69	17.5	3.87	98.4	0.63	15.9	04	0.126	3.2	4.02	102	40
2"	1.73	44	3.62	92	6.00	152.4	0.75	19	4.75	120.6	0.75	19	04	0.138	3.5	4.49	114	40
3"	2.76	70	5.00	127	7.50	190.5	0.94	23.8	6.00	152.4	0.75	19	04	0.157	4	5.51	140	40
4"	3.70	94	6.18	157	9.00	228.6	0.94	23.8	7.50	190.5	0.75	19	08	0.177	4.5	6.50	165	40
6"	5.67	144	8.50	216	11.00	279.4	1.00	25.4	9.50	241.3	0.87	22.2	08	0.217	5.5	7.99	203	40
8"	7.64	194	10.63	270	13.50	342.9	1.13	28.6	11.75	298.4	0.87	22.2	08	0.217	5.5	9.02	229	20
10"	9.72	247	12.76	324	16.00	406.4	1.19	30.2	14.25	362	1.00	25.4	12	0.256	6.5	10.98	279	20
12"	11.73	298	15.00	381	19.00	482.6	1.25	31.8	17.00	431.8	1.00	25.4	12	0.256	6.5	12.01	305	20
14"	12.83	326	16.26	413	21.00	533.4	1.37	34.9	18.75	476.3	1.13	28.6	12	0.256	6.5	14.02	356	20
16"	14.84	377	18.50	470	23.50	596.9	1.44	36.5	21.25	539.8	1.13	28.6	16	0.256	6.5	15.00	381	20
18"	16.85	428	21.00	533.4	25.00	635	1.56	39.7	22.75	577.9	1.25	31.8	16	0.256	6.5	16.50	419	20
20"	18.70	475	23.00	584.2	27.50	698.5	1.69	42.9	25.00	635	1.26	32	20	0.256	6.5	17.99	457	20

Valve Features

Dimensional Table

Size	L -ID(Ød)		ØR/F (0B)		F.OD(ØD)		F.THIK (G)		P.C.D (K)		H - DIA (Øe)		NH (n)	LINING THK (S)		F		WPB ELBOW (SCH)
	INCH	MM	INCH	MM	INCH	MM	INCH	MM	INCH	MM	INCH	MM		INCH	MM	INCH	MM
	0.079	±2	0.079	±2					0.06	±1.6						0.059	±1.5
1/2"	0.39	10	1.37	34.9	3.50	88.9	0.44	11.1	2.37	60.3	0.63	15.9	04	0.126	3.2	1.73	44	40
3/4"	0.59	15	1.68	42.7	3.87	98.4	0.50	12.7	2.75	69.8	0.63	15.9	04	0.126	3.2	1.73	44	40
1"	0.79	20	2.01	51	4.25	108	0.56	14.2	3.13	79.4	0.63	15.9	04	0.126	3.2	1.73	44	40
1.5"	1.34	34	2.87	73	5.00	127	0.69	17.5	3.87	98.4	0.63	15.9	04	0.126	3.2	2.24	57	40
2"	1.73	44	3.62	92	6.00	152.4	0.75	19	4.75	120.6	0.75	19	04	0.138	3.5	2.52	64	40
3"	2.76	70	5.00	127	7.50	190.5	0.94	23.8	6.00	152.4	0.75	19	04	0.157	4	2.99	76	40
4"	3.70	94	6.18	157	9.00	228.6	0.94	23.8	7.50	190.5	0.75	19	08	0.177	4.5	4.02	102	40
6"	5.67	144	8.50	216	11.00	279.4	1.00	25.4	9.50	241.3	0.87	22.2	08	0.217	5.5	5.00	127	40
8"	7.64	194	10.63	270	13.50	342.9	1.13	28.6	11.75	298.4	0.87	22.2	08	0.217	5.5	5.51	140	20
10"	9.72	247	12.76	324	16.00	406.4	1.19	30.2	14.25	362	1.00	25.4	12	0.256	6.5	6.50	165	20
12"	11.73	298	15.00	381	19.00	482.6	1.25	31.8	17.00	431.8	1.00	25.4	12	0.256	6.5	7.48	190	20
14"	12.83	326	16.26	413	21.00	533.4	1.37	34.9	18.75	476.3	1.13	28.6	12	0.256	6.5	7.48	190	20
16"	14.84	377	18.50	469.9	23.50	596.9	1.44	36.5	21.25	539.8	1.13	28.6	16	0.256	6.5	7.99	203	20
18"	16.85	428	21.00	533.4	25.00	635	1.56	39.7	22.75	577.9	1.25	31.8	16	0.256	6.5	8.50	216	20
20"	18.70	475	23.00	584.2	27.50	698.5	1.69	42.9	25.00	635	1.26	32	20	0.256	6.5	9.49	241	20
