Valve Features

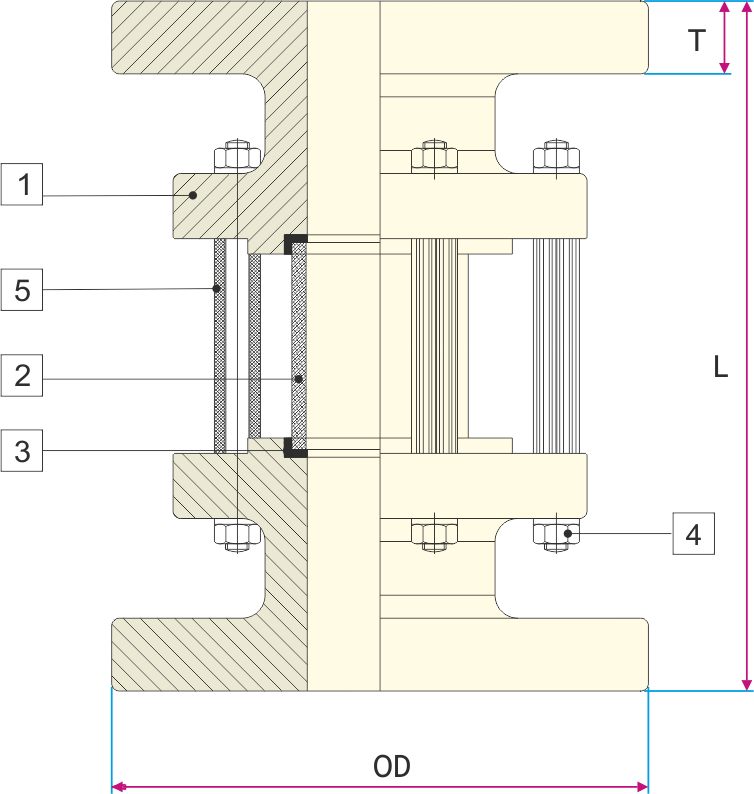

Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | END PIECE | 1 | PP / ISO.PP/ PVDF /ETFE |
| 2 | GLASS TUBE | 1 | BOROSIL |
| 3 | SEAT | 1 | EPDM / VITON /NEOPRENE/ PTFE |
| 4 | STUDS & NUTS | 1 | MS GALVENISED / SS-304 / SS-316 |
| 5 | STUD SLEEVE | 1 | PVC |
Dimension Table
| Size (NB) | L±3 | OD | T |
|---|---|---|---|
| 25 MM | 162 | 120 | 17 |
| 40 MM | 180 | 140 | 17 |
| 50 MM | 212 | 165 | 19 |
| 65 MM | 258 | 203 | 23 |
| 80 MM | 258 | 203 | 23 |
| 100 MM | 298 | 230 | 23 |
| 150 MM | 375 | 280 | 29 |
