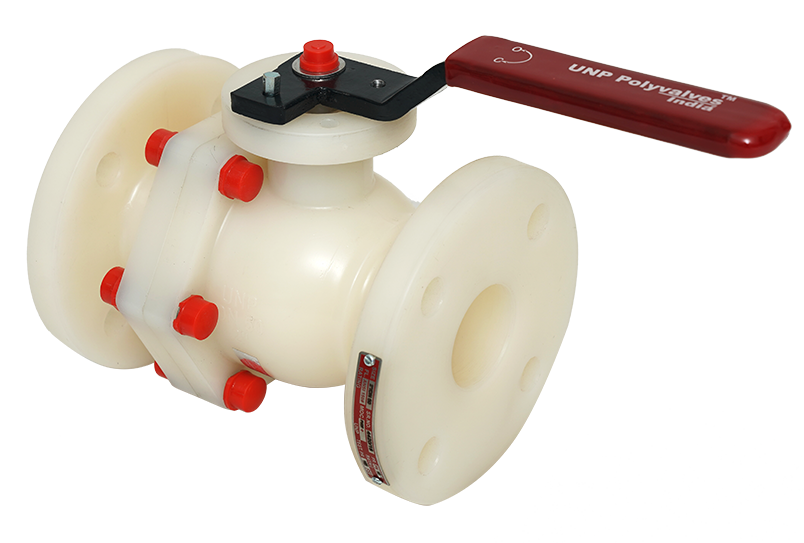

Valve Features

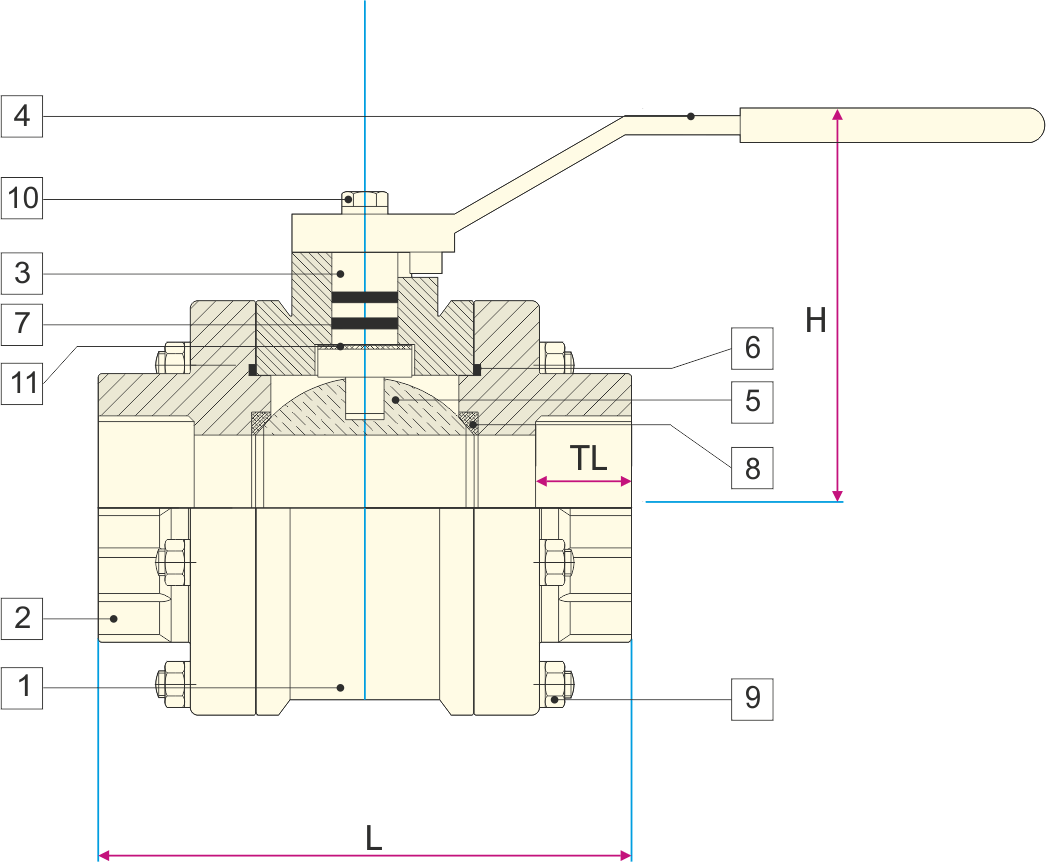

Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP/ PVDF / ETFE |
| 2 | END PIECE | 2 | PP / ISO.PP/ PVDF / ETFE |
| 3 | SPINDLE | 1 | EN-8 INSERTED PP/ ISO.PP / PVDF / ETFE LINED |
| 4 | HANDLE | 1 | MS EPOXY COATED WITH FLEXIBLE PVC SLEEVE |
| 5 | BALL | 1 | PP / ISO. PP / PVDF / ETFE |
| 6 | FLANGE SEAL | 2 | EPDM / VITON / PTFE / NEOPRENE |
| 7 | SPINDLE SEAL | 2 | EPDM / VITON / PTFE / NEOPRENE |
| 8 | SEAT | 2 | PTFE |
| 9 | FASTENERS | - | MS GALVANISED / SS-304 / SS-316 |
| 10 | SPINDLE BOLT | 1 | MS GALVANISED / SS-304 / SS-316 |
| 11 | SPINDLE BUSH | 1 | PTFE |
Dimension Table
| Size (NB) | L±3 | OD | H | T |
|---|---|---|---|---|
| 15 MM | 132 | 95 | 70 | 17 |
| 20 MM | 138 | 114 | 80 | 17 |
| 25 MM | 158 | 120 | 100 | 17 |
| 40 MM | 182 | 140 | 105 | 17 |
| 50 MM | 212 | 165 | 120 | 19 |
| 65 MM | 238 | 180 | 133 | 22 |
| 80 MM | 255 | 203 | 145 | 23 |
| 100 MM | 298 | 230 | 175 | 23 |
| 150 MM | 415 | 305 | 253 | 30 |
